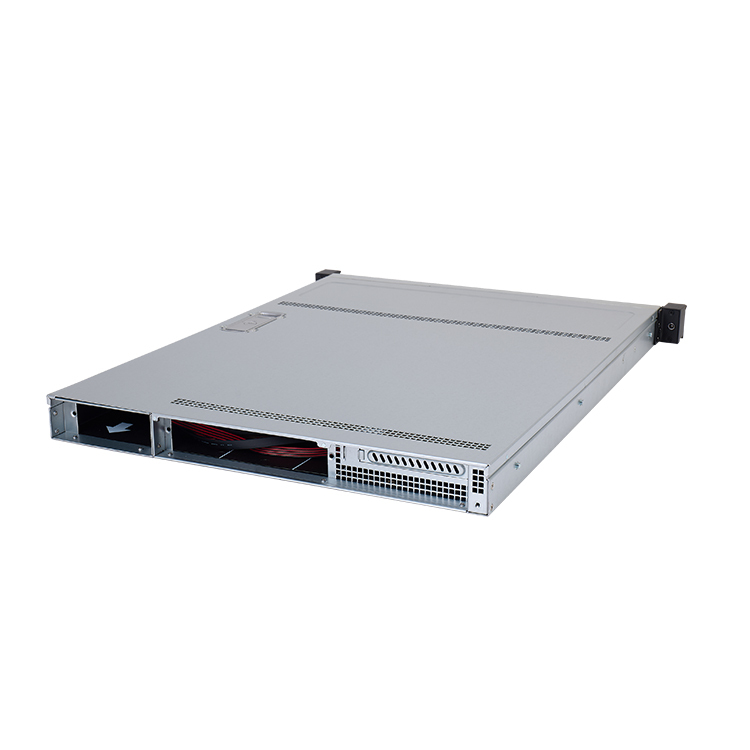

1U 4-bay hot swap storage chassis 580mm depth

Name: 1U 4-bay hot swap storage chassis 580mm depth
Brand: Darta Chassis
SKU: DSC0158004001
Rating: 5 (1 reviews)

No. DSC0158004001

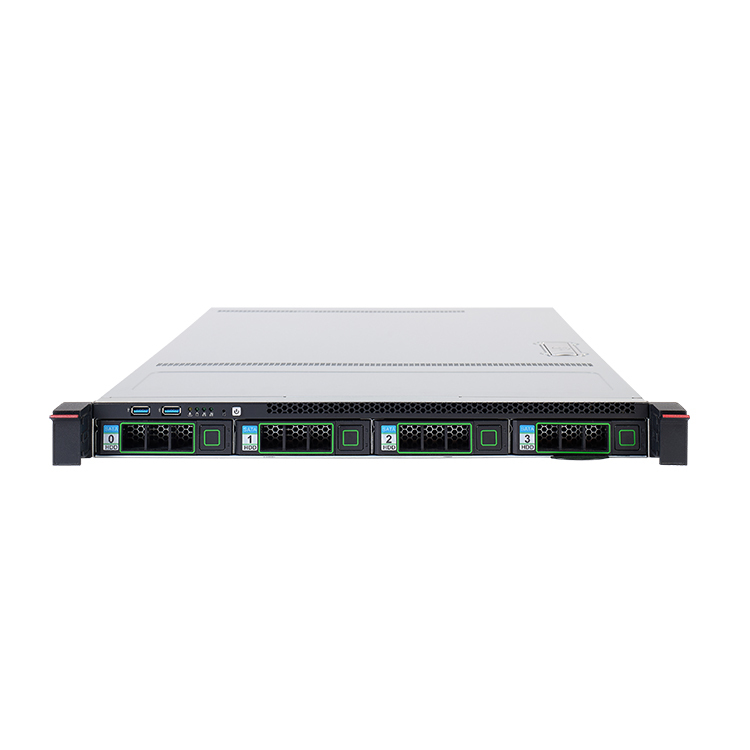

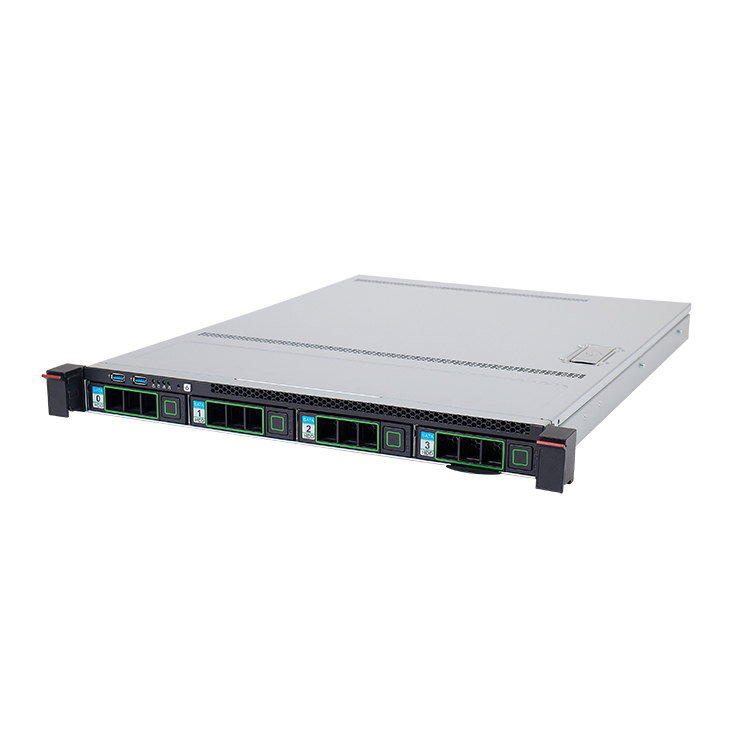

Standard 19-inch rackmount 1U compact storage chassis, equipped with 4 front-access hot-swap 3.5” drive bays, each tray compatible with 3.5” SATA/SAS HDD & 2.5” SSD/NVMe U.2 solid state drive.

Built-in 12Gbps SAS3/SATA3 backplane with SGPIO LED indicator, real-time disk activity/fault alarm, support hot drive replacement without power off for rapid onsite maintenance.

Constructed with high-density SGCC cold rolled steel for anti-vibration and EMC shielding. Front-to-rear straight airflow with multiple PWM smart temperature-controlled fans, stable 7×24/7 continuous operation for IDC & small server room.

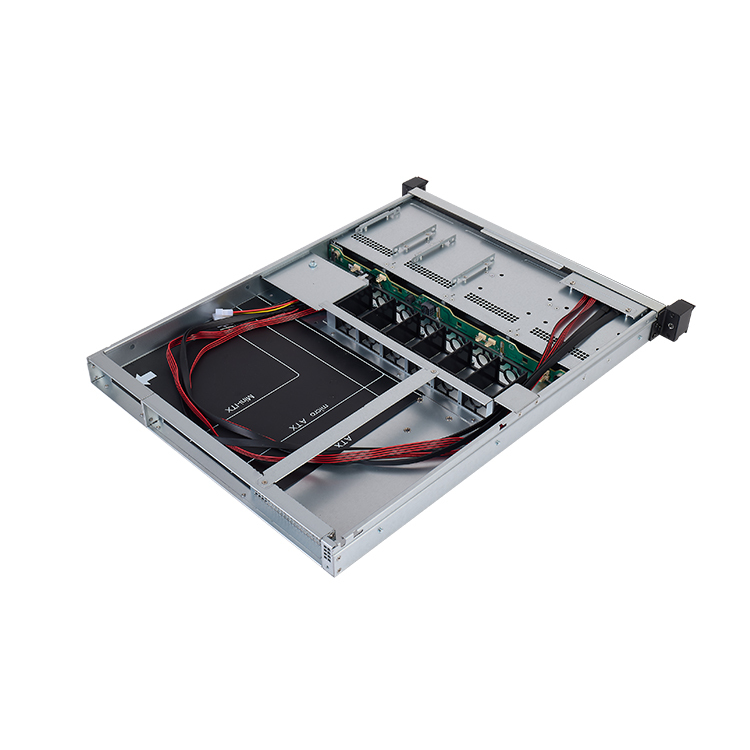

Compatible with Mini-ITX/M-ATX/ATX mainboard; single half-height PCIe slot for RAID card, 10G NIC & HBA adapter expansion.

Power options: standard single 1U PSU or optional 1+1 CRPS redundant power supply to avoid unexpected downtime from power failure.

Front panel integrates power/reset button, system ID locate switch, USB3.0 port and running status LED; optional internal 2×2.5” fixed bays for OS boot SSD installation.

Ideal for compact SMB NAS, edge storage, small NVR video recording, office file server & entry-level enterprise data backup.

GET A QUOTE

Description

1U 4-Bay LFF Hot Swap Storage Chassis | 12G SAS Backplane, Optional Redundant PSU, Space-Saving Rack Storage for Edge & Small Business

Features

*1U rackmount design,meets EIARS-310C standard.
* 4 x 3.5 " hot-swappable drive bays
* Support MAX ATX 12 x 9.6" motherboard
* supplied with 4 x 4028 fan
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	436mm x 580mm x 43.6mm
M/B Form Factor	Support MAX ATX(12x9.6"),Mini-ATX(11.2x8.2"),MicroATX(9.6x9.6")
Drive Configuration	4 x 3.5" HDD bays 2 x 2.5" hot-swappable SSD on rear for option
Backplane	6Gbs/12Gbs/SAS/SATA/NVMe/U.2/expander backplane for option
Power Supply Form Factor	Standard 1U 1+1 redundant power supply,1U power supply,FLEX 1U power supply
Built in system cooling fan	4 x 4028 fan
Expansion slot	1 slots,support full length, half length and 3/4 length
Front panel control	Power ON/OFF x 1, System reset x 1,USB3.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.2mm
Packaging	Carton with EPE foam
Carton size	760565160mm
Volume	0.069 CBM
Net Weight	7.5 kg
Gross Weight	9.6 kg
Operation Temperature	-5°--- 45°
Storage Temperature	-40°---70°
Humidity	10% – 90% relative (non-condensing)

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
