2U 12-bay hot swap storage chassis

Name: 2U 12-bay hot swap storage chassis
Brand: Darta Chassis
SKU: DSC0268012001
Rating: 5 (1 reviews)

No. DSC0268012001

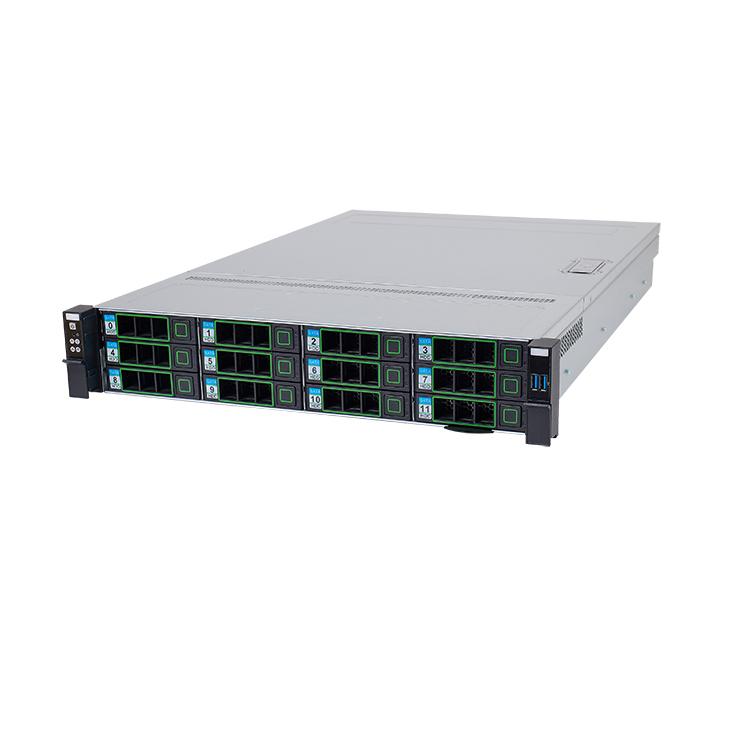

This is standard 19-inch rackmount 2U compact storage chassis, equipped with 12 front-access hot-swap 3.5” drive bays, each tray compatible with 3.5” SATA/SAS HDD and backward compatible with 2.5” SSD/NVMe U.2 solid state drives.

Comes with 12Gbps SAS3/SATA3 backplane integrated SGPIO status LED, realizing real-time disk fault alert and non-stop hot drive replacement without system power off.

Adopts high-strength SGCC cold rolled steel construction for excellent shock resistance & EMC shielding. Multiple PWM smart temperature-controlled hot-swap fans build front-to-rear straight airflow to guarantee stable 7×24/7 continuous running in IDC room.

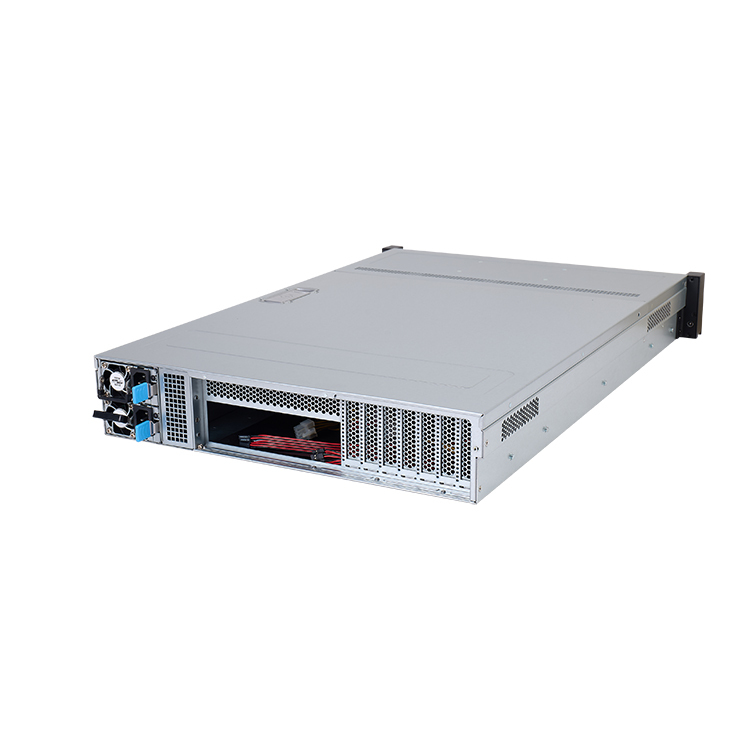

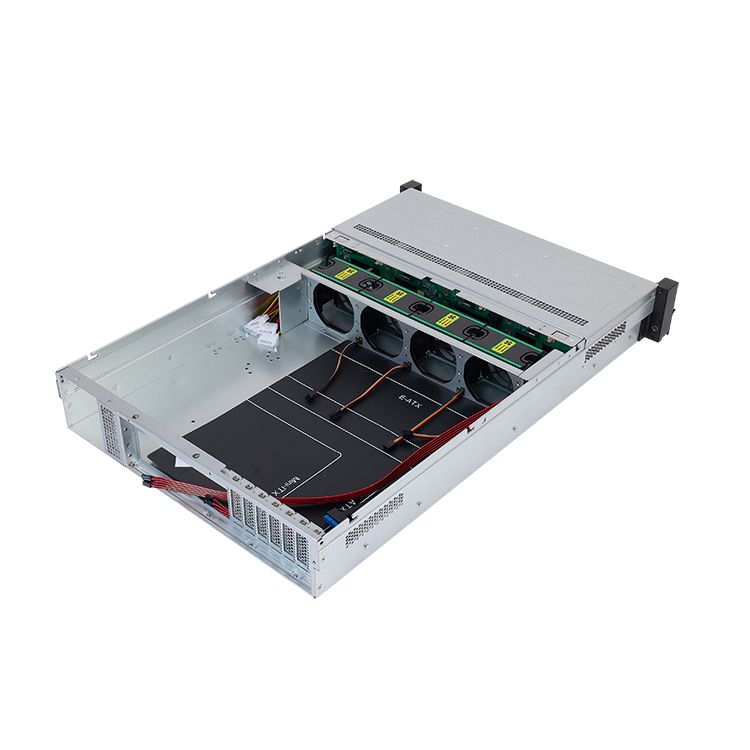

Supports ATX/M-ATX/E-ATX server mainboard, low-profile PCIe expansion slots for RAID card, 10G/25G Ethernet NIC and accelerator cards. Available for standard 2U single PSU or optional 1+1 CRPS redundant power supply to avoid sudden downtime from power failure.

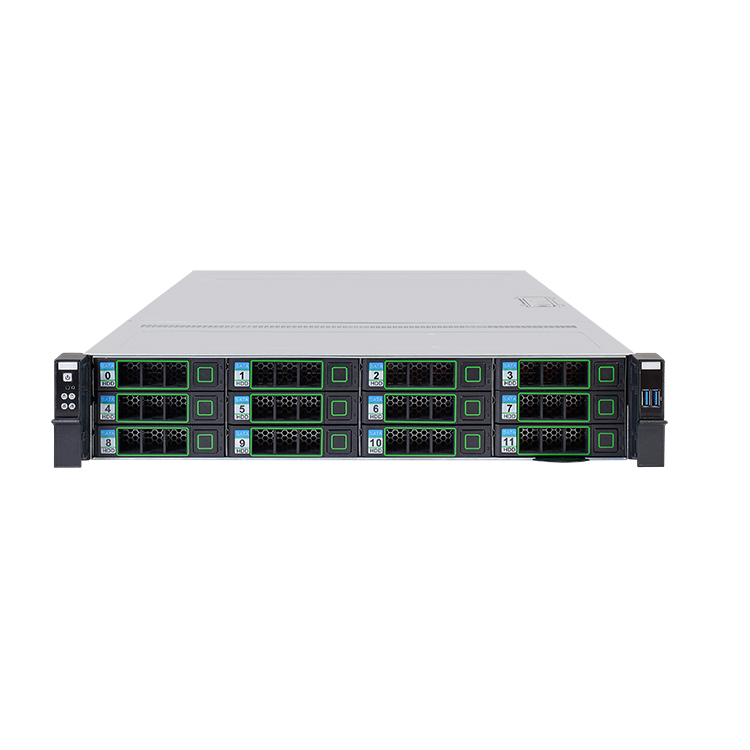

Front panel assembled with power switch, reset button, system ID locate key, USB3.0 interface and running status indicator; optional rear 2×2.5” internal drive slots for OS boot SSD installation.

Perfect for small-medium private cloud, distributed storage, NVR video surveillance, SMB file server, edge computing & enterprise backup storage.

GET A QUOTE

Description

2U 12-bay hot swap storage chassis, 12G SAS backplane, optional redundant PSU, space-saving compact storage for edge & SMB data center.

Features

*2U rackmount design,meets EIARS-310C standard.
* 12 x 3.5 " hot-swappable drive bays
* Support MAX ATX 13.9 x 13" motherboard
* supplied with 3 x 8038 fan
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	436mm x 680mm x 88mm
M/B Form Factor	Support MAX 13.9x13" motherboard, EEB(12X13"),CEB(12x10.5"), ATX(12x9.6"),Mini-ATX(11.2x8.2"),MicroATX(9.6x9.6")
Drive Configuration	12 x 3.5" HDD bays 2 x 2.5" hot-swappable SSD on rear for option
Backplane	6Gbs/12Gbs/SAS/SATA/NVMe/U.2/expander backplane for option
Power Supply Form Factor	Standard CRPS 1+1 redundant power supply,2U power supply. ATX power supply for option.
Built in system cooling fan	3 x 8038 fan
Expansion slot	half-hight card slot,7/9/11 slots,support full length, half length and 3/4 length
Front panel control	Power ON/OFF x 1, System reset x 1,USB3.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.2mm
Packaging	Carton with EPE foam
Carton size	860565217mm
Volume	0.106 CBM
Net Weight	11 kg
Gross Weight	16.2 kg
Operation Temperature	-5°--- 45°
Storage Temperature	-40°---70°
Humidity	10% – 90% relative (non-condensing)

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
