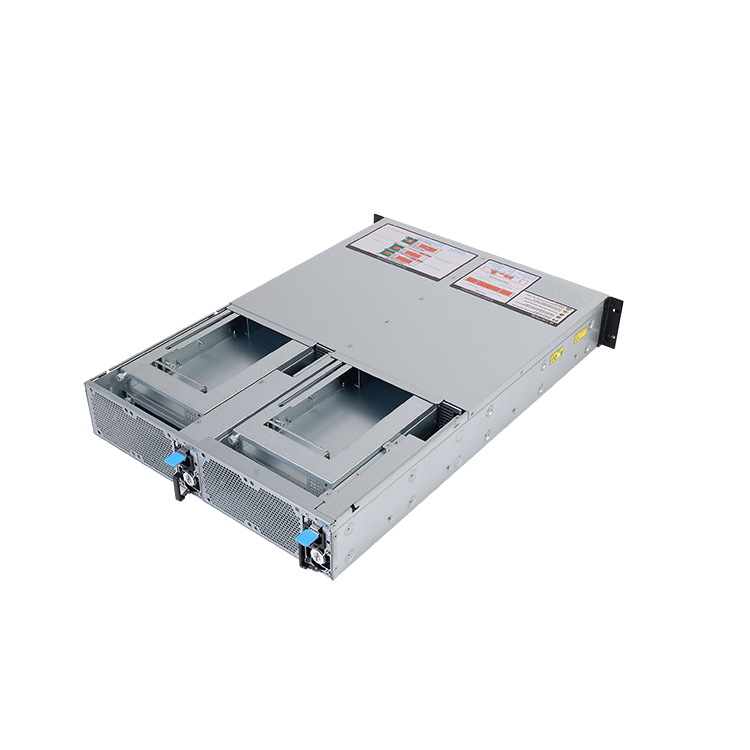

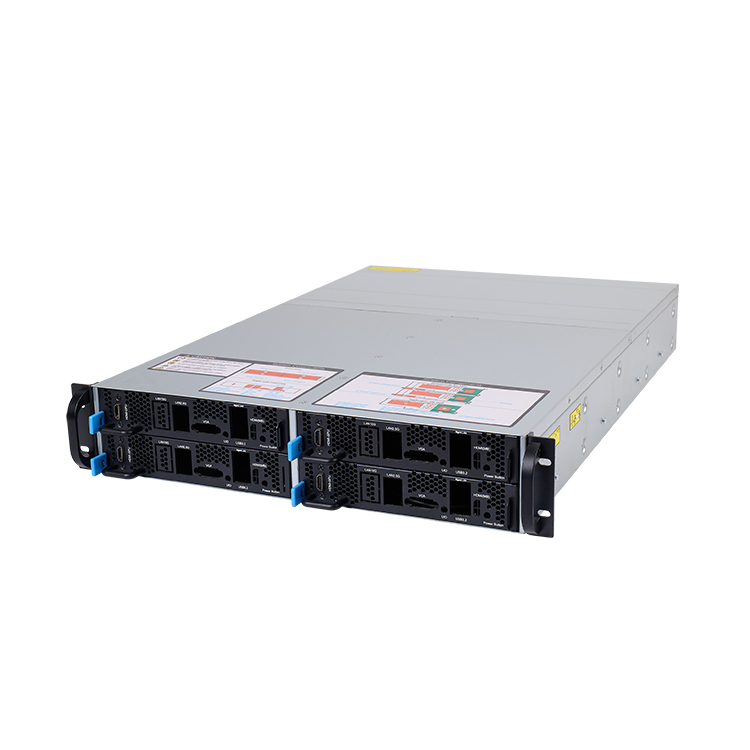

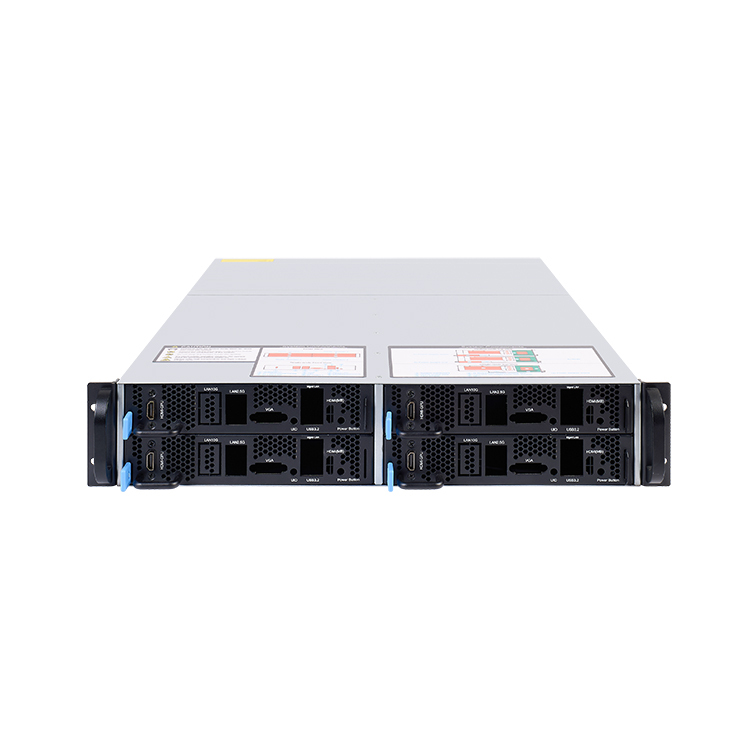

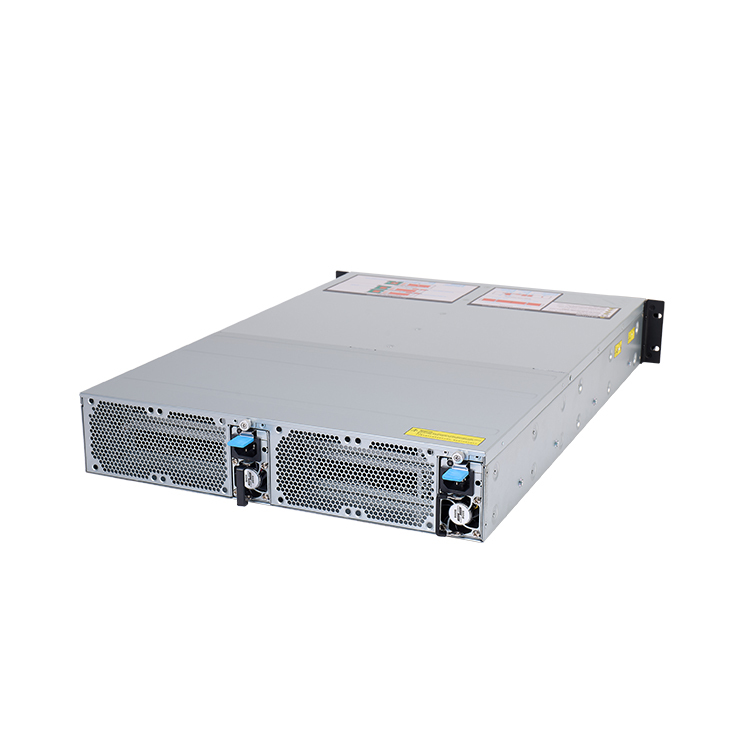

2U 4-Nodes Twin Rack Server Chassis | Hot-swap Compute Sled, Shared Redundant PSU, High Density Cloud/HPC Chassis
Features*4 nodes server chassis
*Support ITX motherboard
*Support redundant power supply
*support turbo GPU
*Smooth border prevent lacerating your skin
Specification
| Dimensions ( W x D x H ) |
435mm x 660mm x 88.1mm |
| M/B Form Factor |
Support ITX 6.7x6.7" motherboard |
| Drive Configuration |
support 1x U.2 of each node,4 nodes |
| Back plane |
1x U.2 back plane for each node,4 nodes |
| Power Supply Form Factor |
support 2U CRPS1+1 redundant power supply |
| Built in system cooling fan |
support 3 x 4056 fans for each node |
| Expansion slot |
support one turbo dual-width GPU each node |
| Front panel control |
Power ON/OFF x 1, UID x 1,USB3.0 x 2,HDMI x 1 |
| Network port |
dual gigabit network port and gigabit management port |
| Materials |
SGCC 1.0mm |
| Packaging |
Carton with EPE foam |
| Carton size |
830x565x217mm |
| Volume |
0.11 CBM |
| Net Weight |
14.4 KG |
| Gross Weight |
19.6KG |
| Operation Temperature |
-5°--- 45° |
| Storage Temperature |
-40°---70° |
| Humidity |
10% – 90% relative (non-condensing) |
Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
