2U 8-bay hot swap storage chassis

Name: 2U 8-bay hot swap storage chassis
Brand: Darta Chassis
SKU: DSC0268008001
Rating: 5 (1 reviews)

No. DSC0268008001

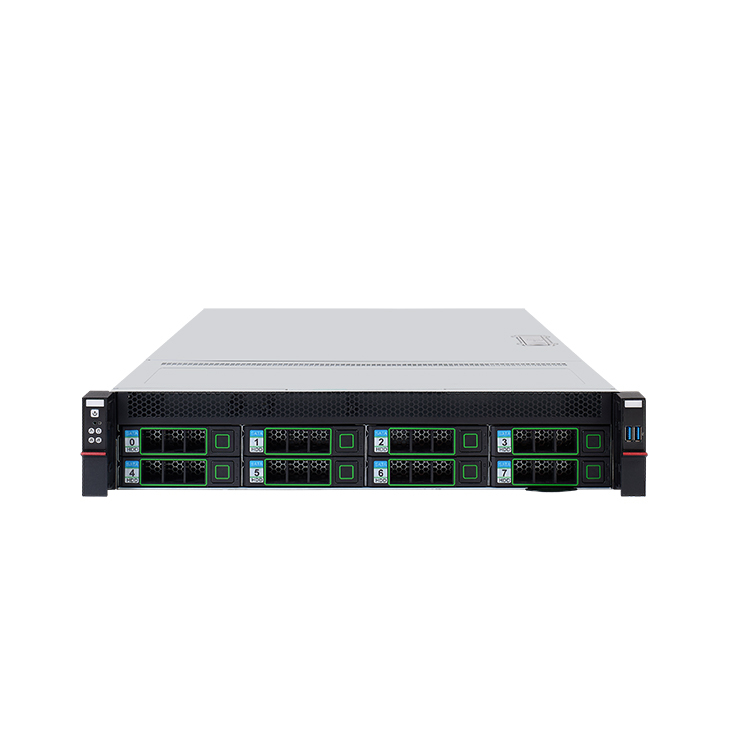

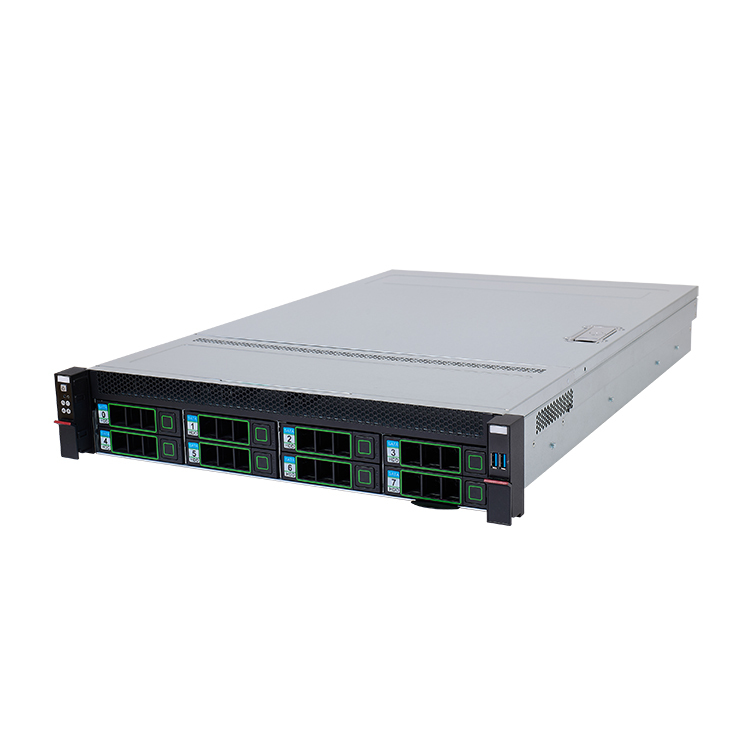

Standard 19-inch rackmount 2U compact storage chassis, equipped with 8 front hot-swap drive bays for 3.5” SATA/SAS HDD, each tray backward compatible with 2.5” SSD / NVMe U.2 solid-state drive.

Built-in 12Gbps SAS3/SATA3 backplane with SGPIO HDD activity & fault LED, supporting non-stop hot drive replacement without system power cut for onsite maintenance.

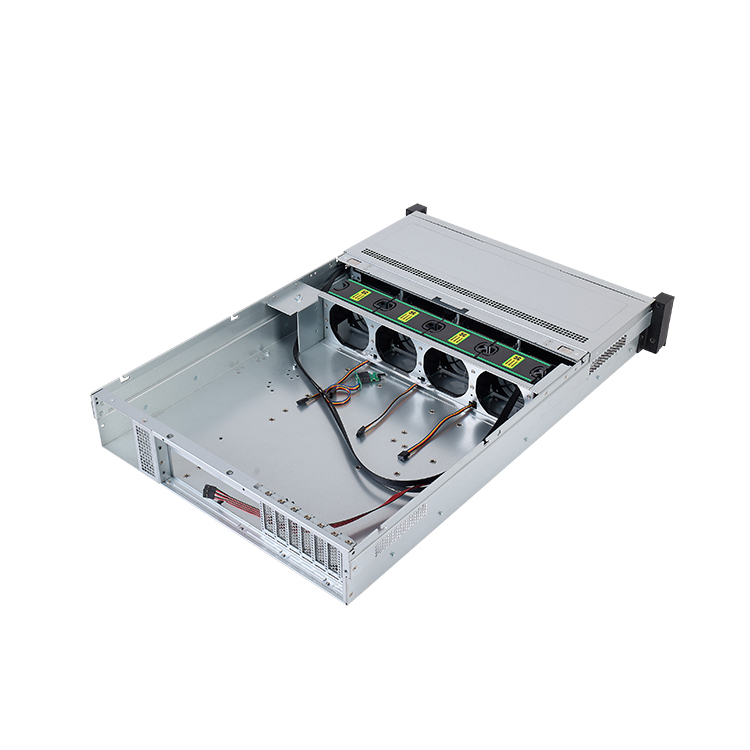

Constructed with thick SGCC cold-rolled steel for anti-vibration and EMC shielding, adopting front-to-rear straight airflow layout with multiple PWM smart speed-adjustable fans to guarantee stable 7×24/7 continuous operation in IDC & enterprise computer room.

Compatible with M-ATX / ATX / E-ATX server motherboard; half-height PCIe expansion slots available for RAID card, 10G/25G Ethernet NIC, HBA adapter and other peripheral cards.

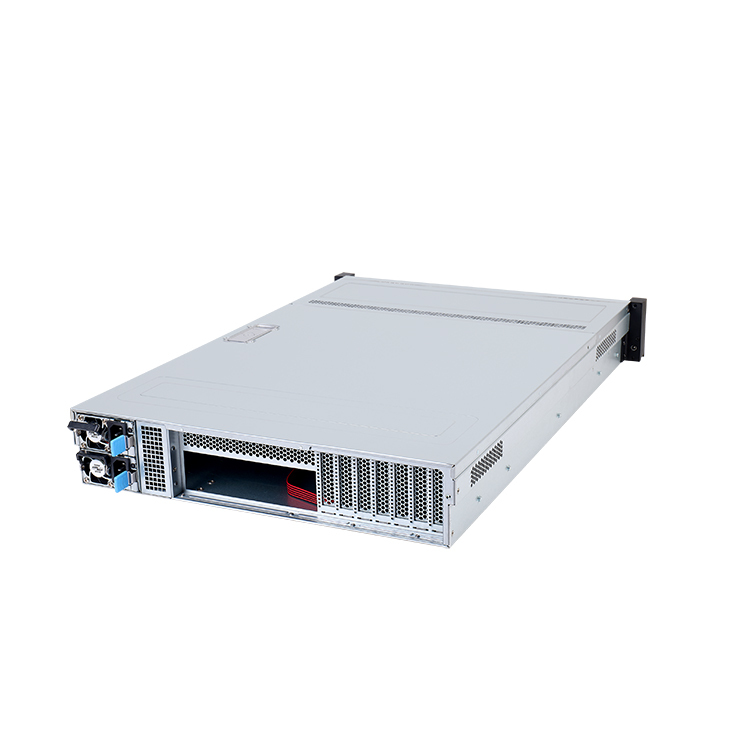

Power option: standard fixed 2U PSU or optional 1+1 CRPS redundant power supply to avoid unexpected downtime caused by single power failure.

Front panel integrates power switch, reset button, system locate ID LED, dual USB3.0 ports; optional internal/rear 2×2.5” fixed/hot-swap bays for OS boot SSD installation.

Ideal for SMB NAS, small private cloud, edge storage, video NVR, enterprise backup & entry-level distributed storage system.

GET A QUOTE

Description

2U 8-Bay LFF Hot Swap Storage Chassis | 12G SAS Backplane, Optional Redundant PSU, Compact Rack Storage for SMB & Edge Computing

Features

*2U rackmount design,meets EIARS-310C standard.
* 8 x 3.5 " hot-swappable drive bays
* Support MAX ATX 13.9 x 13" motherboard
* supplied with 3 x 8038 fan
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	436mm x 680mm x 88mm
M/B Form Factor	Support MAX 13.9x13" motherboard, EEB(12X13"),CEB(12x10.5"), ATX(12x9.6"),Mini-ATX(11.2x8.2"),MicroATX(9.6x9.6")
Drive Configuration	8 x 3.5" HDD bays 2 x 2.5" hot-swappable SSD on rear for option
Backplane	6Gbs/12Gbs/SAS/SATA/NVMe/U.2/expander backplane for option
Power Supply Form Factor	Standard CRPS 1+1 redundant power supply,2U power supply. ATX power supply for option.
Built in system cooling fan	3 x 8038 fan
Expansion slot	half-hight card slot,7/9/11 slots,support full length, half length and 3/4 length
Front panel control	Power ON/OFF x 1, System reset x 1,USB3.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.2mm
Packaging	Carton with EPE foam
Carton size	860565217mm
Volume	0.106 CBM
Net Weight	11 kg
Gross Weight	16.2 kg
Operation Temperature	-5°--- 45°
Storage Temperature	-40°---70°
Humidity	10% – 90% relative (non-condensing)

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
