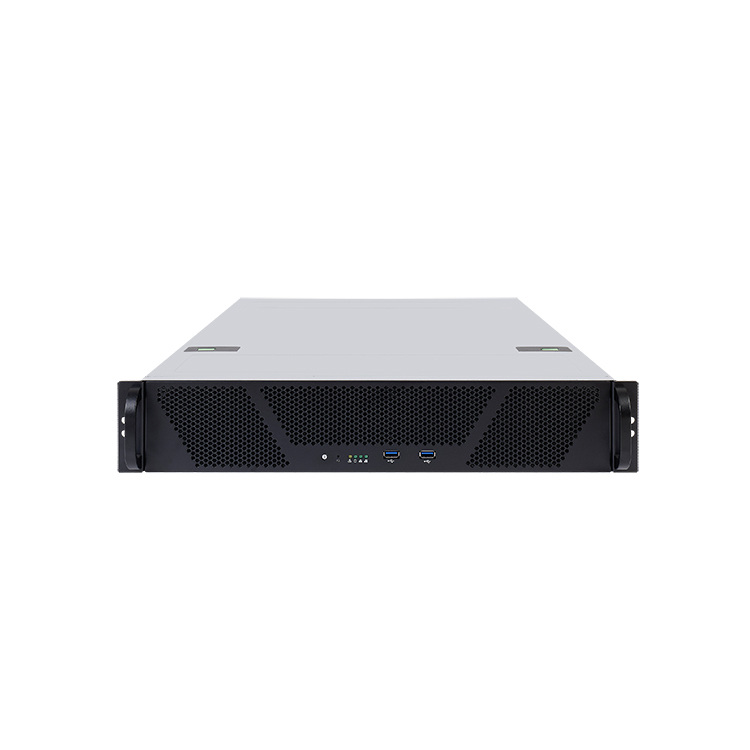

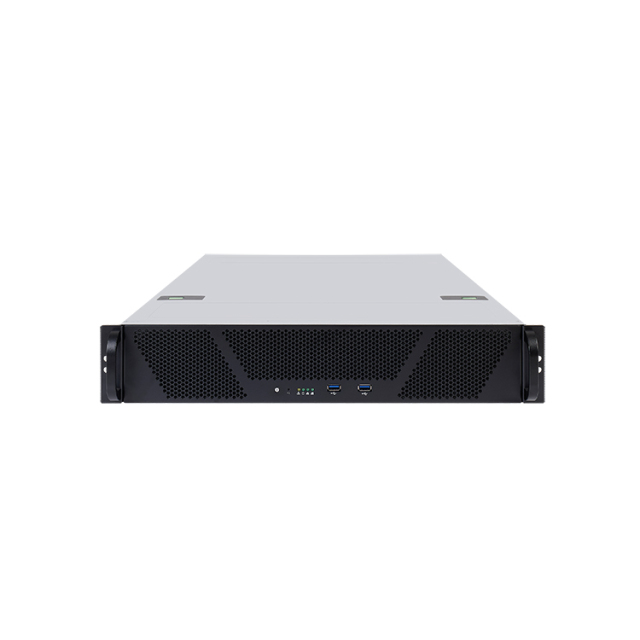

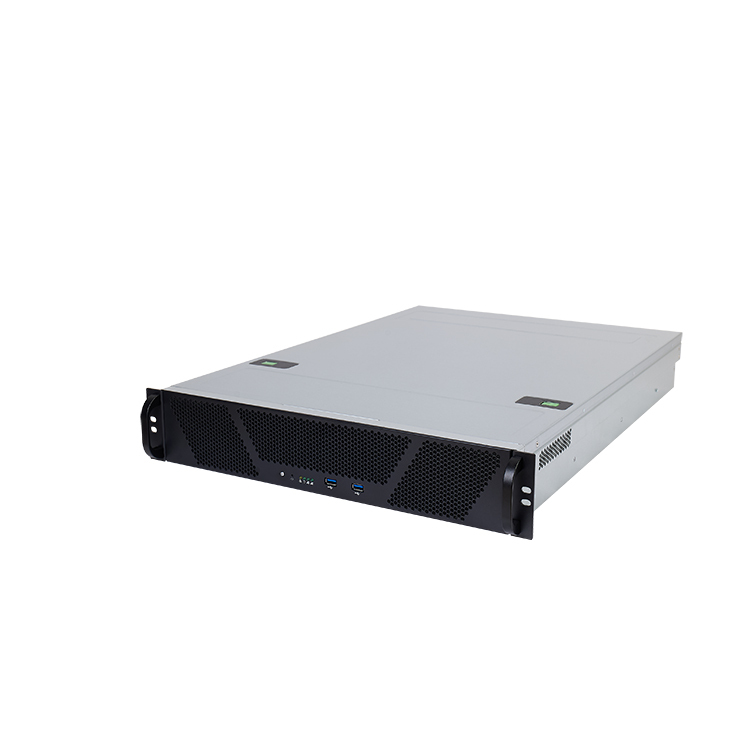

2U rack mount 560mm depth chassis
Features*2U rackmount design,meets EIARS-310C standard.
*Support 4 x 3.5" HDD drive bays or 8 x 2.5" SSD drive bays
*Support MAX 12 x 13" motherboard
*Build in 3 x 8038 fans
*Two front accessible USB port,2 x USB3.0
*Anti-vibration design for drive bay
*Smooth border prevent lacerating your skin
Specification
| Dimensions ( W x D x H ) |
436mm x 560mm x 88.1mm |
| M/B Form Factor |
Supports EEB(12x13"),CEB(12x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard |
| Drive Configuration |
4 x 3.5" HDD drive bays or 8 x 2.5" SSD drive bays |
| Power Supply Form Factor |
Standard 2U power supply,2U 1+1CRPS redundant power supply |
| Cooling System |

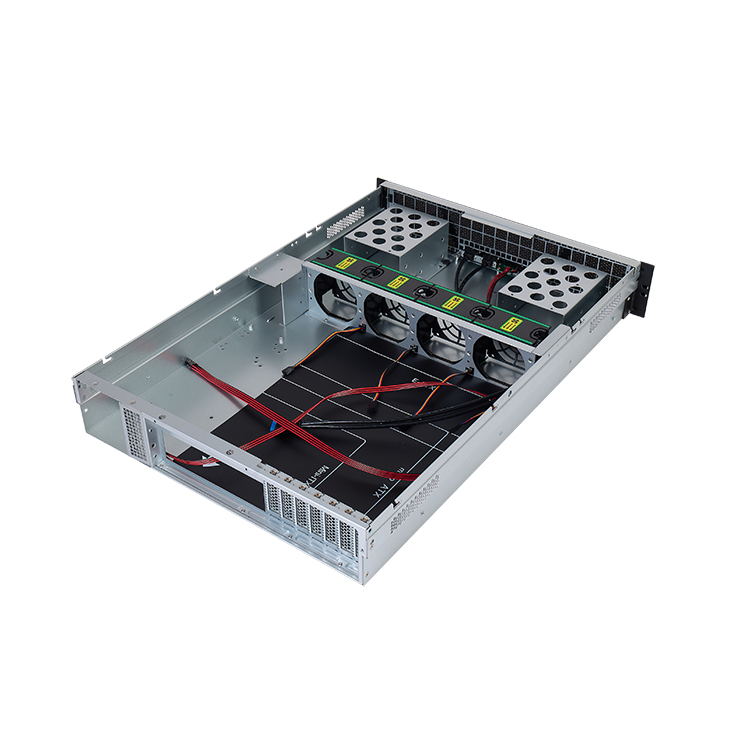

Build in 3x8038 fans |

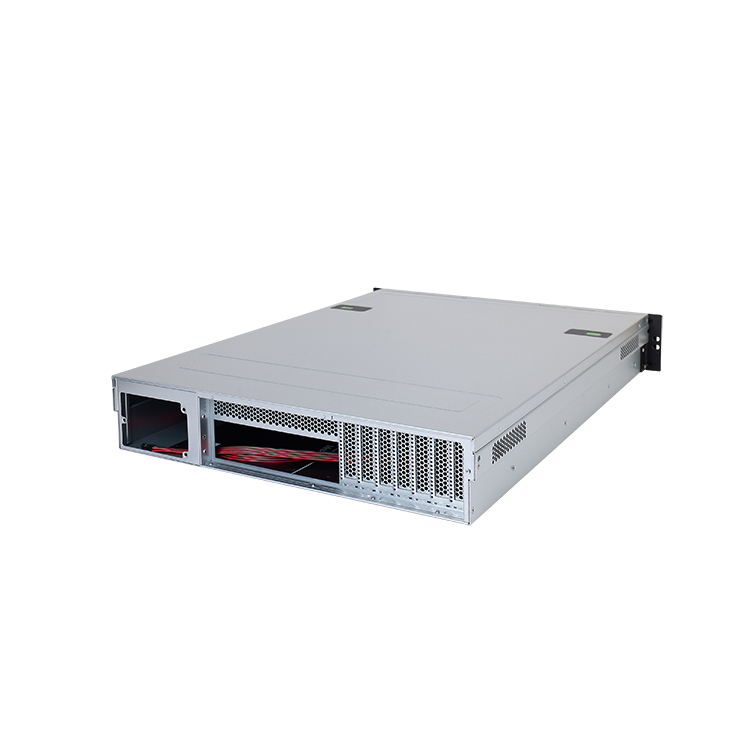

| Expansion slot |
7 slots for half-hight PCI card |
| Front panel control |
Power ON/OFF x 1, System reset x 1, USB3.0 x 2 |
| Indicator |
Power ON/OFF x 1, HDD x 1,Nic x 2 |
| Materials |
SGCC 1.2mm |
| Packaging |
Double strenthen carton with EPE foam |
| Carton size |
740*565*217mm |
| Volume |
0.091 CBM |
| Net Weight |
7.7 kg |
| Gross Weight |
12.8 kg |
| Operation Temperature |
-5°--- 45° |
| Storage Temperature |
-40°---70° |
| Humidity |
10% – 90% relative (non-condensing) |
