2U rack mount 650mm depth chassis

Name: 2U rack mount 650mm depth chassis
Brand: Darta Chassis
SKU: DRC0265001
Rating: 5 (1 reviews)

No.DRC0265001

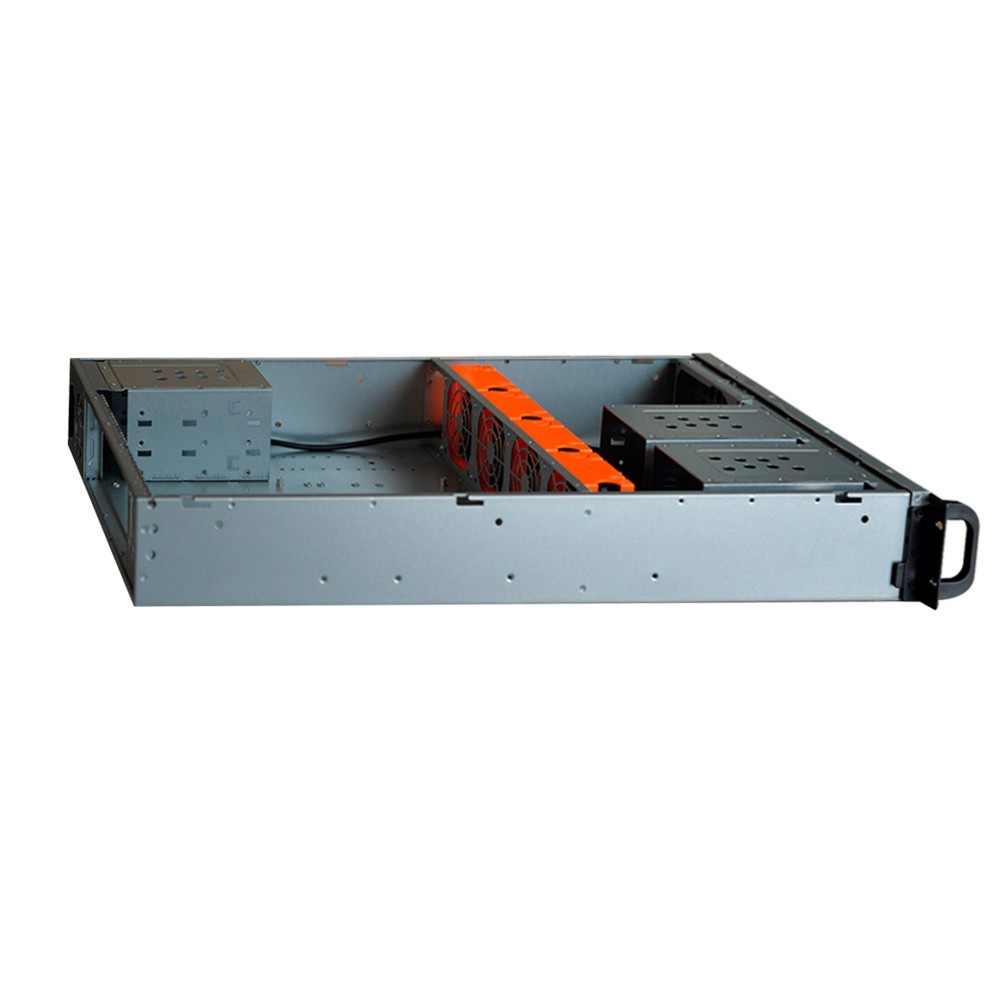

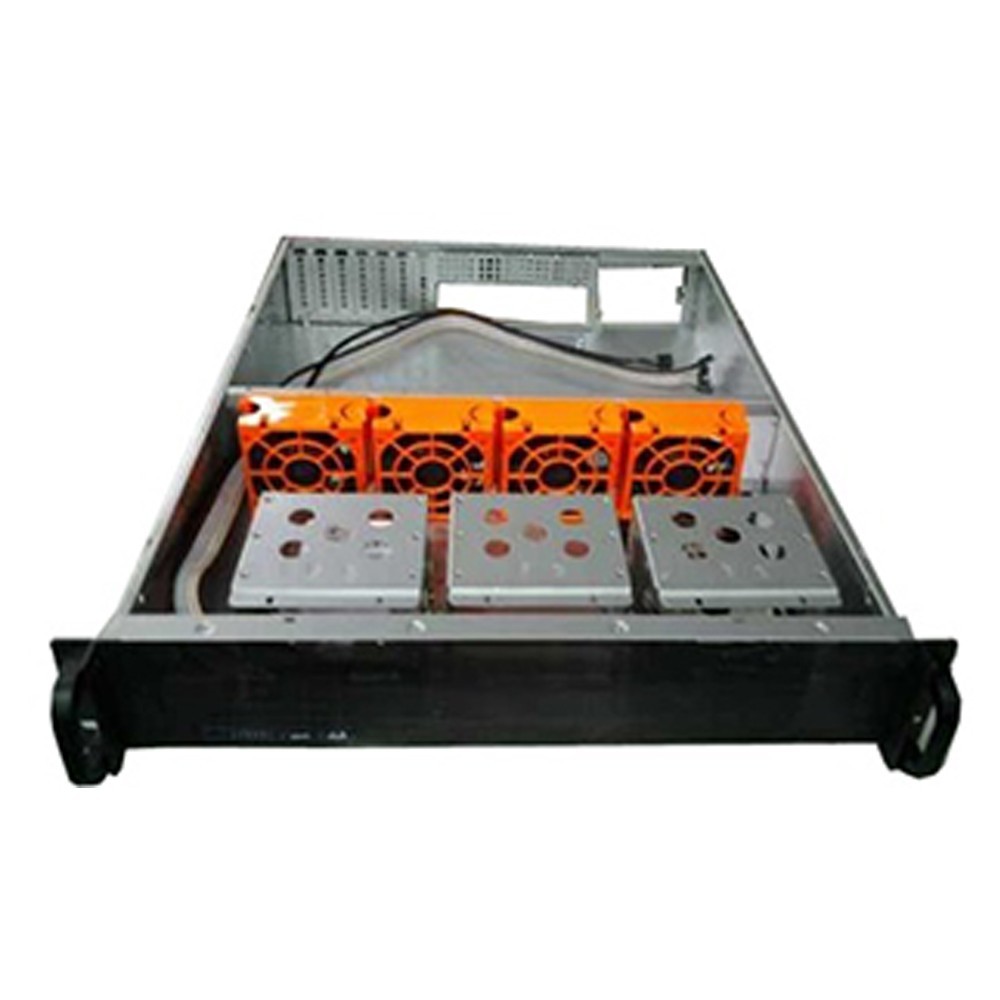

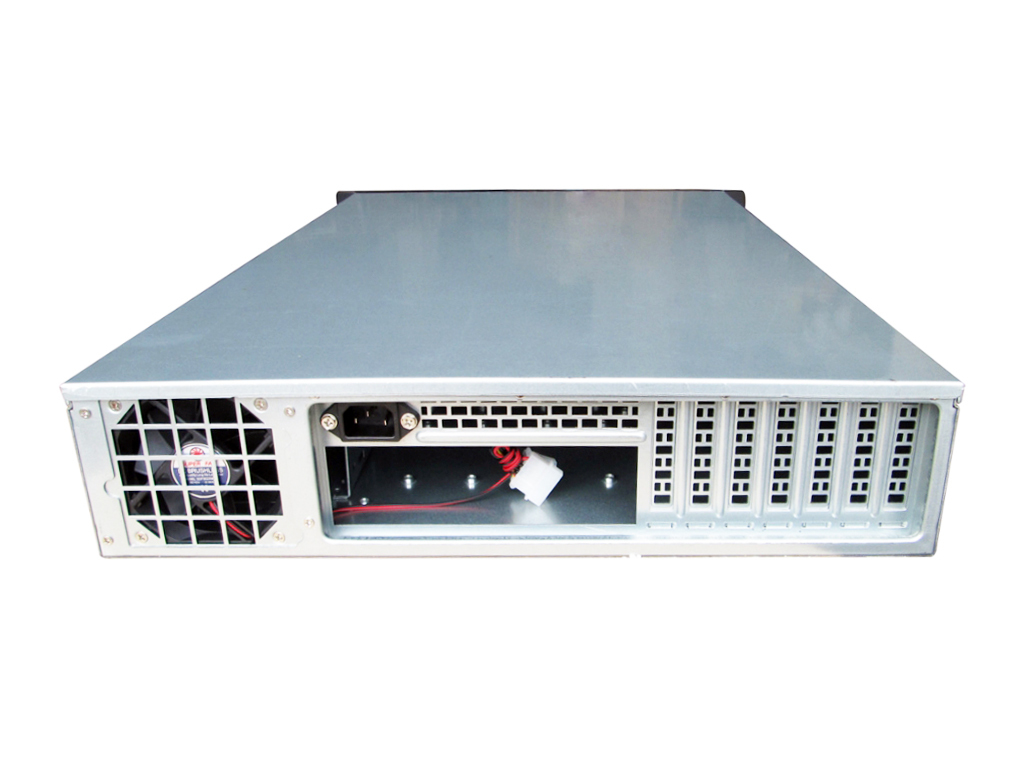

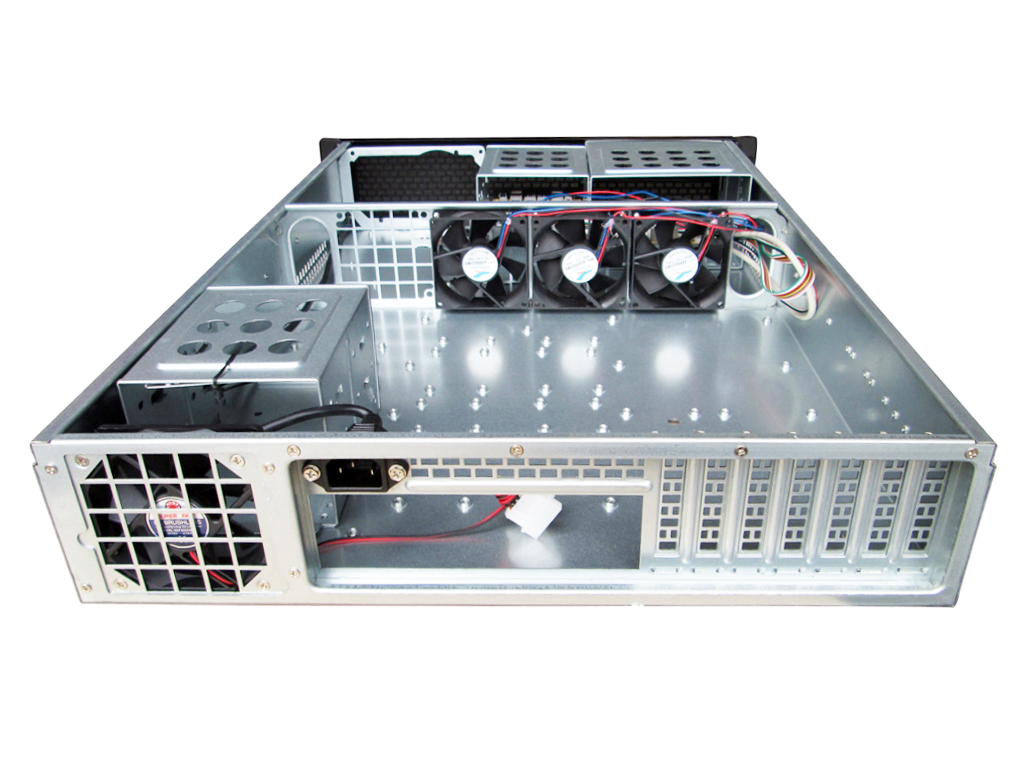

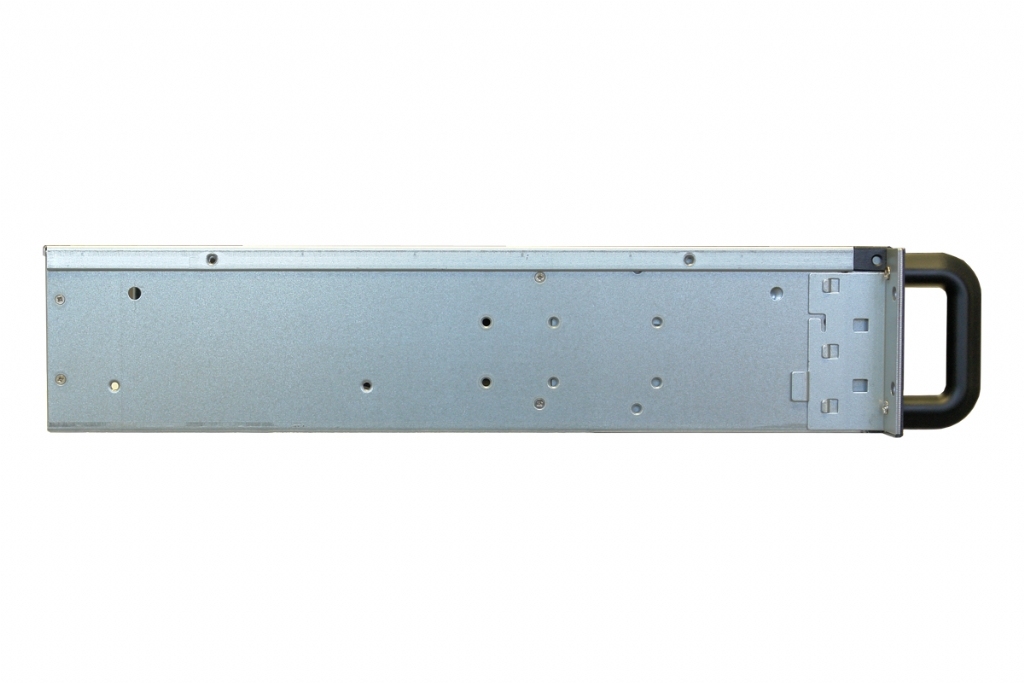

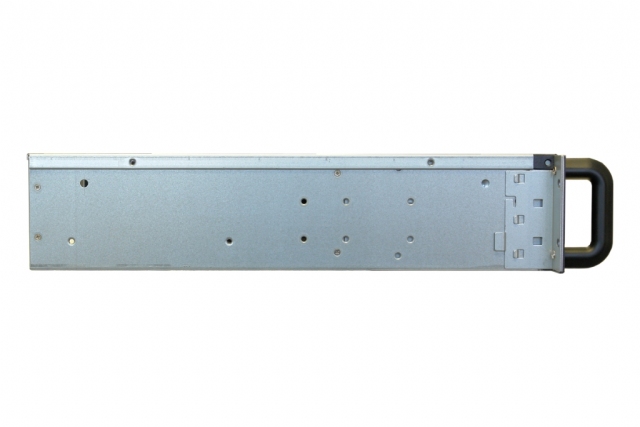

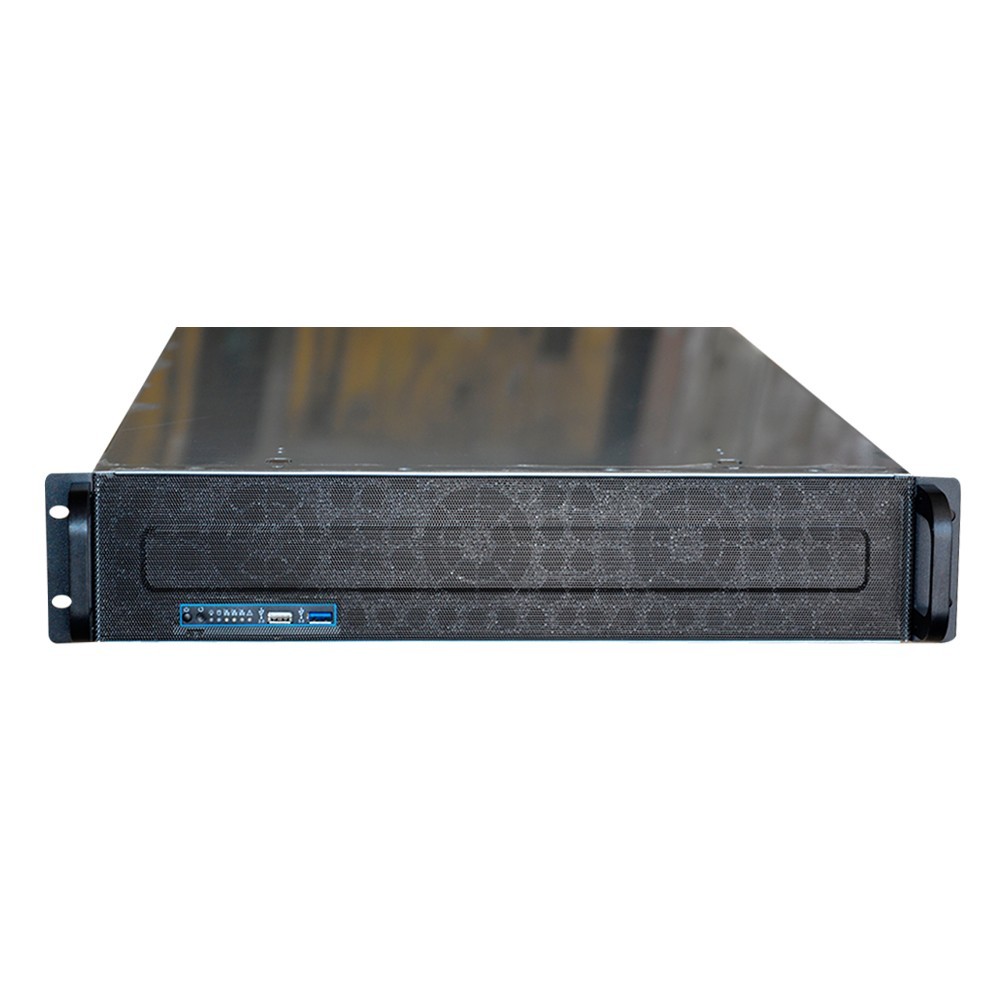

This is a standard 2U rackmount chassis with overall depth of 650mm, conforming to 19-inch rack specifications. It offers larger internal space than 1U models, compatible with mainstream server hardware, widely used for enterprise servers, storage nodes, virtualization and edge computing.

GET A QUOTE

Description

Features
*2U rackmount design,meets EIARS-310C standard.
*6 x 3.5 " drive bays
*2 x 5.25" ODD bay
*Support MAX ATX 12 x 13" motherboard
*supplied with 4 x 80mm fans on the middle
*7 PCI expansion slots or 4 PCI expansion slots
*Two front accessible USB2.0 port
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	430mm x 650mm x 89mm
M/B Form Factor	Support MAX 12x13" motherboard
Drive Configuration	6 x 3.5" HDD bays 2 x 5.25" ODD bay
Power Supply Form Factor	ATX power suppy or mini redundant power supply
Built in system cooling fan	4 x 8025 fan
Expansion slot	7 slots
Front panel control	Power ON/OFF x 1, System reset x 1,USB2.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.0mm
Packaging	Carton with EPE foam
Carton size	830555150mm
Volume	0.092 CBM
Net Weight	10 kg
Gross Weight	12 kg

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
