4U 24-bay hot swap storage chassis

Name: 4U 24-bay hot swap storage chassis
Brand: Darta Chassis
SKU: DSC0468024001
Rating: 5 (1 reviews)

No.DSC0468024001

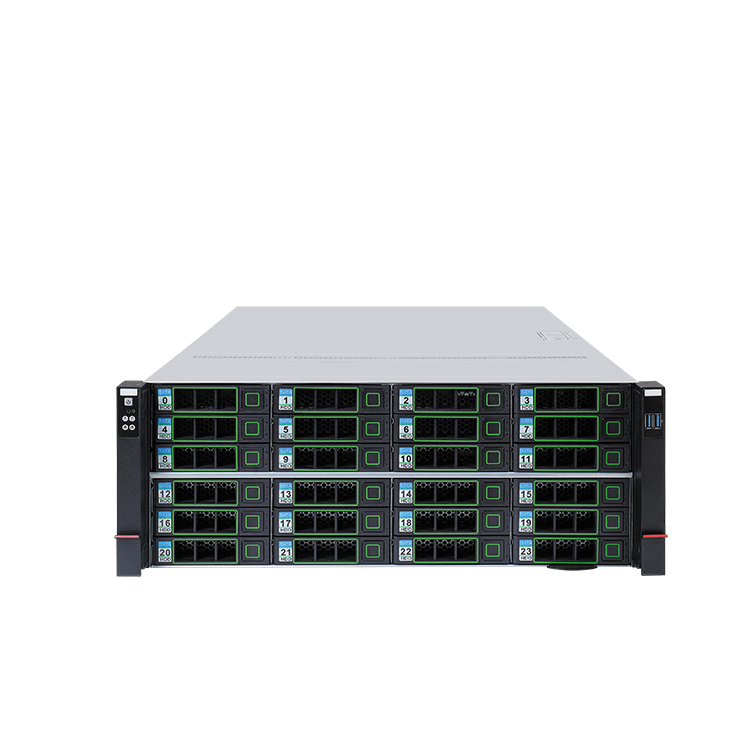

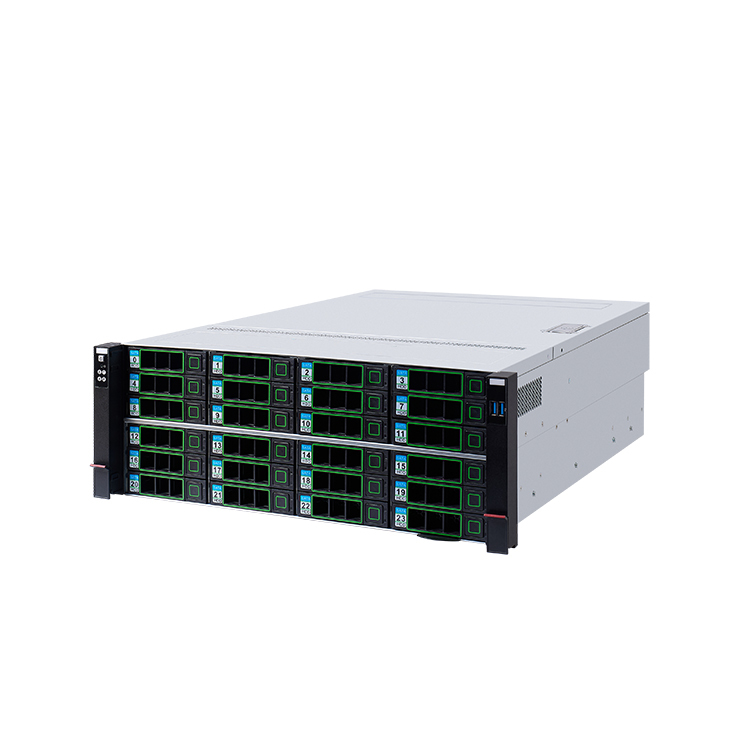

This is a standard 19-inch rackmount 4U high-density storage chassis with total 24 hot-swap drive bays, mainly front-accessible tray design. Each tray supports 3.5” SATA/SAS HDD and downward compatible with 2.5” SSD/NVMe U.2 drives.

Multiple backplanes with distinct functions are available for selection, and power supplies can be flexibly configured.

Built with heavy-duty SGCC steel sheet for anti-vibration and reliable EMI shielding. Multiple PWM temperature-controlled hot-swap fans form front-to-rear airflow to realize stable 7×24 hours continuous operation in data center environment.

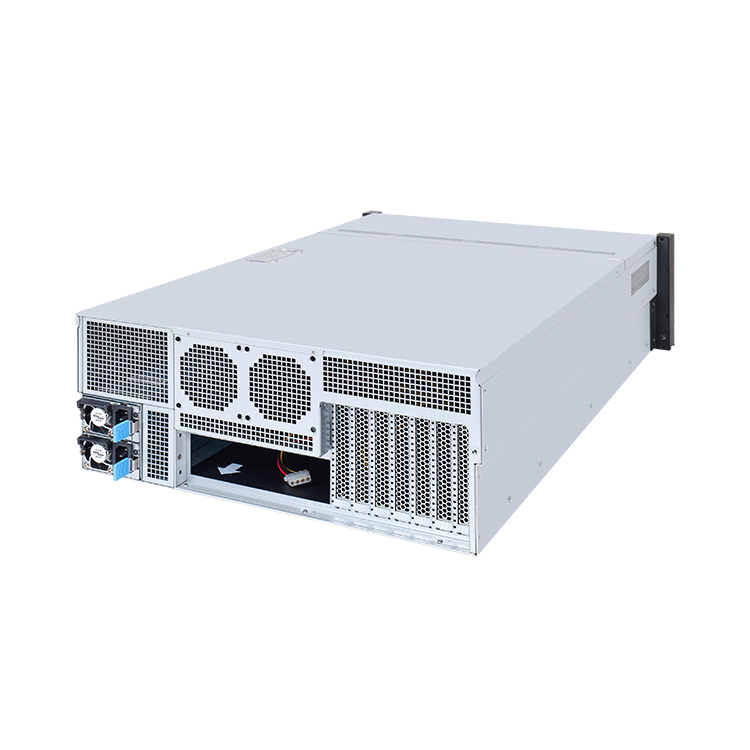

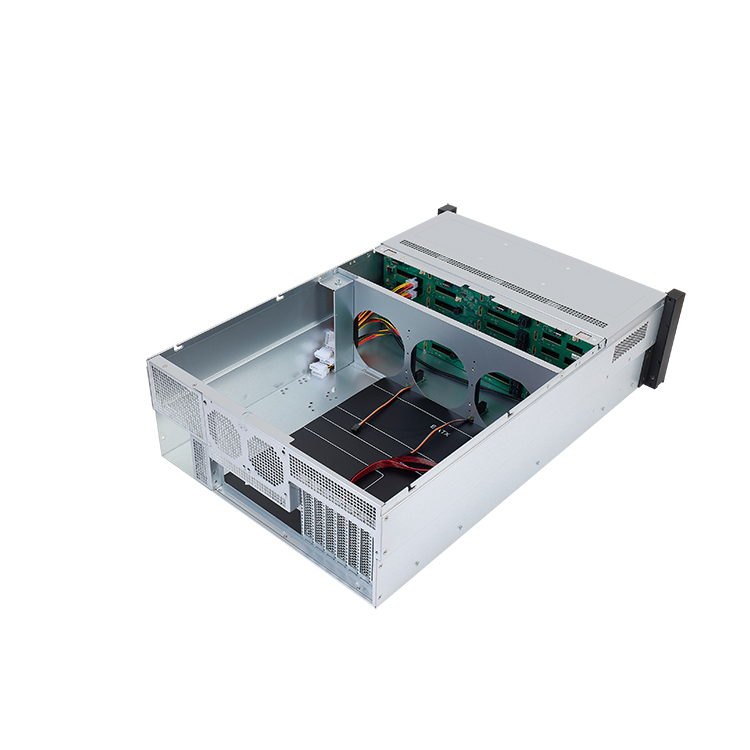

It supports EEB/CEB/ATX large-size server motherboard and abundant full-height PCIe slots for RAID card, 10GbE network card and expansion adapters. Compatible with CRPS redundant PSU (1+1 redundant power design optional) to avoid unexpected downtime caused by single power failure.

Front panel integrates power button, reset switch, ID indicator, USB 3.0 ports and system status LED. Optional rear 2.5” small drive bays reserved for system boot SSD. Widely used in private cloud storage, distributed storage, video surveillance NVR, big data backup, media asset storage and enterprise database server.

GET A QUOTE

Description

4U 24-bay hot swap storage chassis, 12G high-speed backplane, optional redundant PSU, high-density enterprise storage for data center & cloud deployment.

Features
* 4U rackmount design,meets EIARS-310C standard.
* 24 x 3.5 " hot-swappable drive bays
* Support MAX ATX 13.9 x 13" motherboard
* supplied with 3 x 12038 fan
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	436mm x 680mm x 176mm
M/B Form Factor	Support MAX 13.9x13" motherboard, EEB(12X13"),CEB(12x10.5"), ATX(12x9.6"),Mini-ATX(11.2x8.2"),MicroATX(9.6x9.6")
Drive Configuration	24 x 3.5" HDD bays 2 x 2.5" hot-swappable SSD on rear for option
Backplane	6Gbs/12Gbs/SAS/SATA/NVMe/U.2/expander backplane for option
Power Supply Form Factor	Standard CRPS 1+1 redundant power supply,2U power supply,ATX power supply
Built in system cooling fan	3 x 12038 fan
Expansion slot	full-hight card slot,7/9/11 slots,support full length, half length and 3/4 length
Front panel control	Power ON/OFF x 1, System reset x 1,USB3.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.2mm
Packaging	Carton with EPE foam
Carton size	860565305mm
Volume	0.149 CBM
Net Weight	17.1kg
Gross Weight	22.1 kg
Operation Temperature	-5°--- 45°
Storage Temperature	-40°---70°
Humidity	10% – 90% relative (non-condensing)

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
