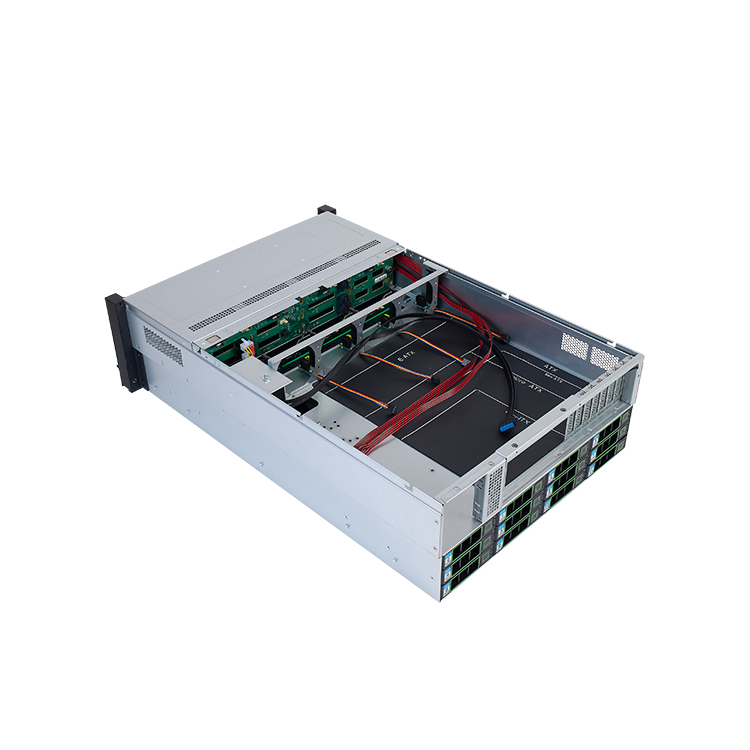

4U 36-bay hot swap storage chassis

Name: 4U 36-bay hot swap storage chassis
Brand: Darta Chassis
SKU: DSC0468036001
Rating: 5 (1 reviews)

No.DSC0468036001

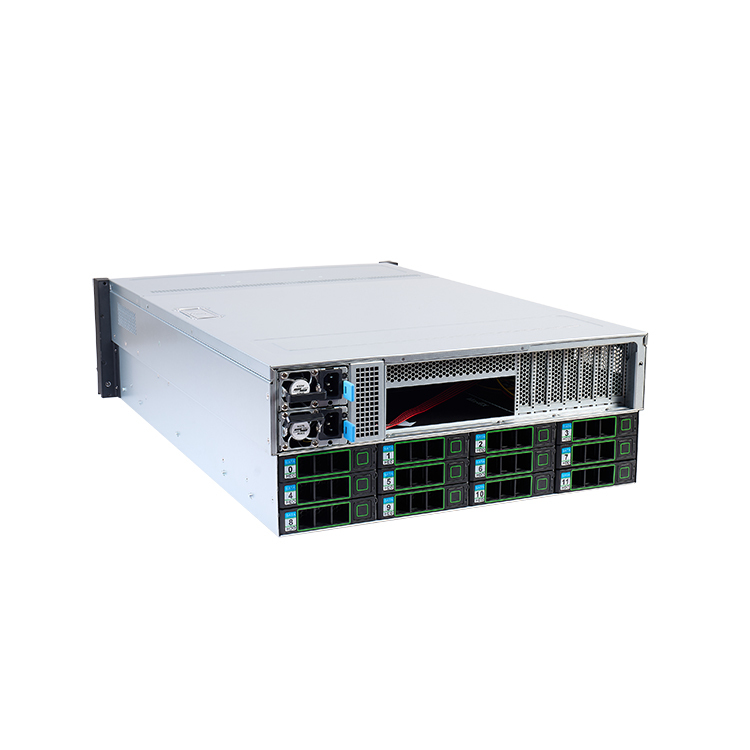

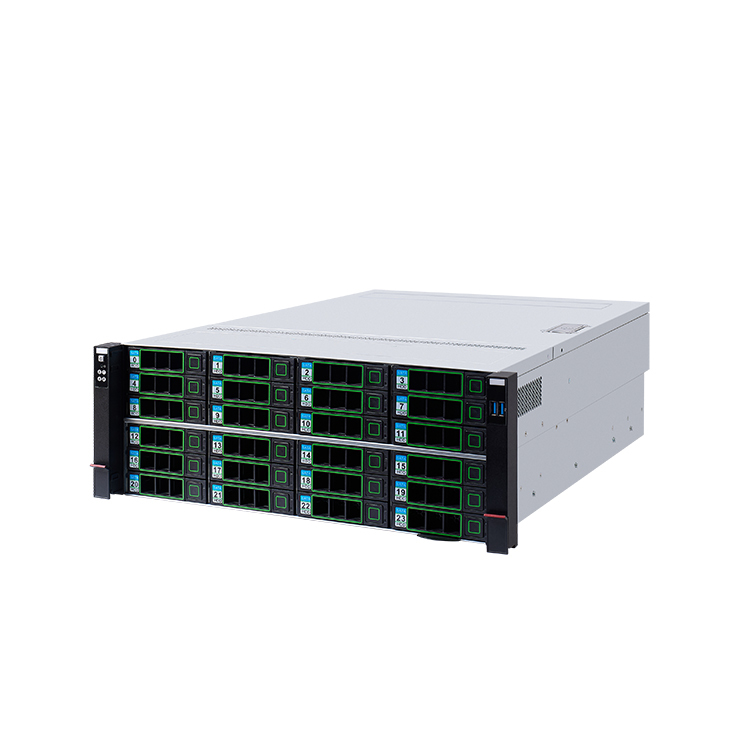

4U 36-Bay Hot-Swap Enterprise Storage Chassis follows 19-inch standard rack dimension, featuring high-density storage layout with 36 front & rear accessible hot-swap drive bays (24 front +12 rear). Each tray supports 3.5” SATA/SAS HDD and backward compatible with 2.5” NVMe/U.2/SSD. Equipped with 12Gbps SAS Expander backplane & SGPIO indicator, enabling high-speed data transmission and real-time HDD fault monitoring.Constructed with 1.2mm heavy-duty SGCC steel for anti-vibration & EMC shielding; 8pcs PWM hot-swap cooling fans with front-to-rear optimized airflow ensure stable 7×24/24 continuous operation. It supports EEB/CEB/ATX server motherboards and 7 full-height PCIe slots for RAID HBA, 10G NIC or accelerator cards, compatible with CRPS 1+1 redundant 80Plus Platinum PSU from 1200W to 1600W for power redundancy. Front panel integrates power switch, reset, ID button, dual USB3.0 and status LED; optional rear 2×2.5” boot bays and onboard M.2 slot for OS installation. Ideal for distributed storage, private cloud, big data archive, surveillance storage, media editing server, database and on-premises AI storage pool.

GET A QUOTE

Description

4U 36-bay hot swap storage chassis | 12Gb SAS backplane, redundant PSU, high density enterprise storage for cloud & data center.

Features
* 4U rackmount design,meets EIARS-310C standard.
* 36 x 3.5 " hot-swappable drive bays
* Support MAX ATX 13.9 x 13" motherboard
* supplied with 8 x 80mm fan
* 7 half-hight PCI expansion slots
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	436mm x 680mm x 176mm
M/B Form Factor	Support MAX 13.9x13" motherboard, EEB(12X13"),CEB(12x10.5"), ATX(12x9.6"),Mini-ATX(11.2x8.2"),MicroATX(9.6x9.6")
Drive Configuration	36 x 3.5" HDD bays 2 x 2.5" hot-swappable SSD on rear for option
Backplane	6Gbs/12Gbs/SAS/SATA/NVMe/U.2/expander backplane for option
Power Supply Form Factor	Standard 2U CRPS 1+1 redundant power supply
Built in system cooling fan	8 x 8038 fan
Expansion slot	7 slots for half-hight card
Front panel control	Power ON/OFF x 1, System reset x 1,USB3.0 x 2
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.2mm
Packaging	Carton with EPE foam
Carton size	860565305mm
Volume	0.149 CBM
Net Weight	21.8kg
Gross Weight	26.9 kg
Operation Temperature	-5°--- 45°
Storage Temperature	-40°---70°
Humidity	10% – 90% relative (non-condensing)

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
