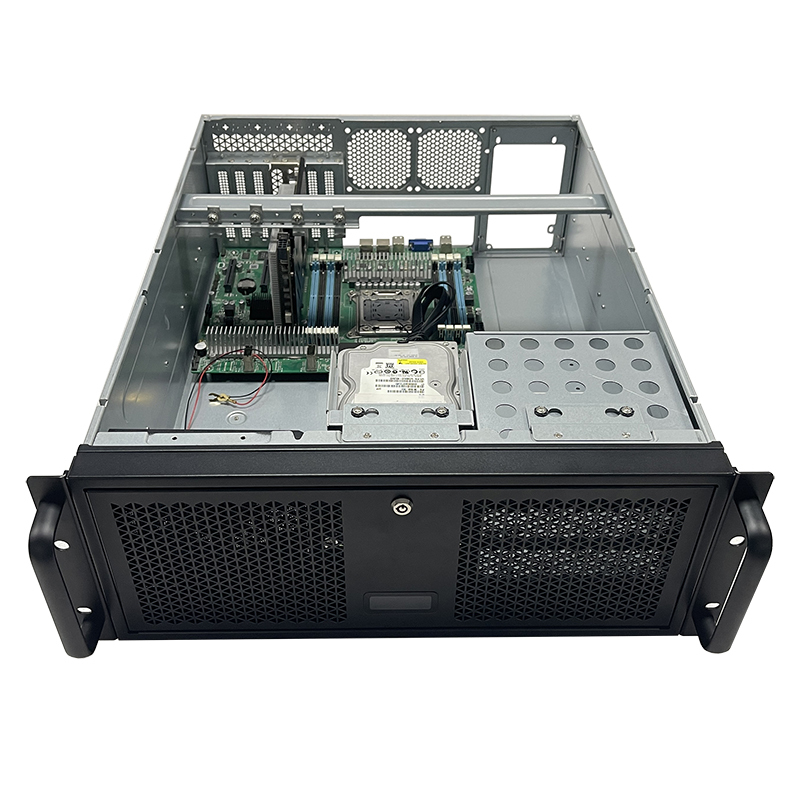

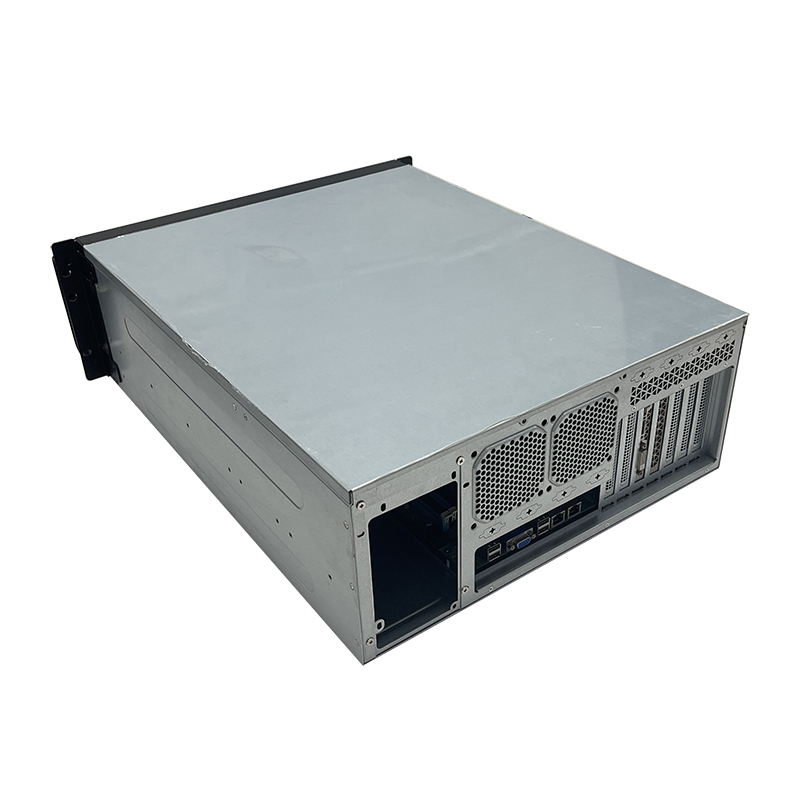

4U INDUSTRIAL COMPUTER CHASSIS

Name: 4U INDUSTRIAL COMPUTER CHASSIS
Brand: Darta Chassis
SKU: DRC570001
Rating: 5 (1 reviews)

No.DRC570001

4U Industrial Rackmount Chassis complies with 19-inch standard cabinet dimension, supporting dual rack & tower installation for flexible deployment. It fully fits ATX / Micro-ATX / Mini-ITX industrial motherboards and reserves up to 7 full-height PCI/PCIe slots for motion control cards, DAQ modules and GPU accelerator cards. Constructed with heavy-duty SGCC steel sheet, the chassis delivers outstanding shock resistance and EMC shielding against industrial electromagnetic interference. Optimized front-to-rear airflow design with multiple industrial cooling fans and washable dust filter ensures stable 7×24/7 continuous operation under harsh ambient conditions. Lockable front door integrates power switch, reset button, front USB ports and hardware status LED indicators; configurable internal or hot-swap HDD bays support standard ATX and redundant industrial PSU options. Widely applied in factory automation, machine vision, security surveillance, power control and edge computing projects.

GET A QUOTE

Description

Features

*4U rackmount design,meets EIARS-310C standard.
*(3 sets of 4×3.5" HDD bays) or (2 sets of 4×3.5" HDD bays + 1 set of 3×5.25" ODD bays)
*Support Extended ATX / ATX / micro ATX /Mini ATX/ EEB / CEB motherboard
*Support 1 x 12025 fan on front and 2 x 8025 fans on rear
*7 PCI expansion slots
*support ATX power supply and CPRS1+1 redundant power supply
*Two front accessible USB port,1xUSB3.0 and 1 x USB2.0
*Smooth border prevent lacerating your skin

Specification

Dimensions ( W x D x H )	430mm x 573mm x 176mm
M/B Form Factor	SupportExtended ATX / ATX / micro ATX /Mini ATX/ EEB / CEB motherboard
Drive Configuration	(3 sets of 4×3.5" HDD bays) or (2 sets of 4×3.5" HDD bays + 1 set of 3×5.25" ODD bays)
Power Supply Form Factor	ATX power suppy or CPRS1+1 redundant power supply
Built in system cooling fan	Support 1 x 12025 fan on front and 2 x 8025 fans on rear
Expansion slot	7 slots
Front panel control	Power ON/OFF x 1, System reset x 1,USB2.0 x 1,USB3.0 x 1
Indicator	Power ON/OFF x 1, HDD x 1,Nic x 2
Materials	SGCC 1.0-1.2mm
Packaging	Carton with EPE foam
Carton size	720567260mm
Net Weight	12 kg
Gross Weight	15 kg

Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
