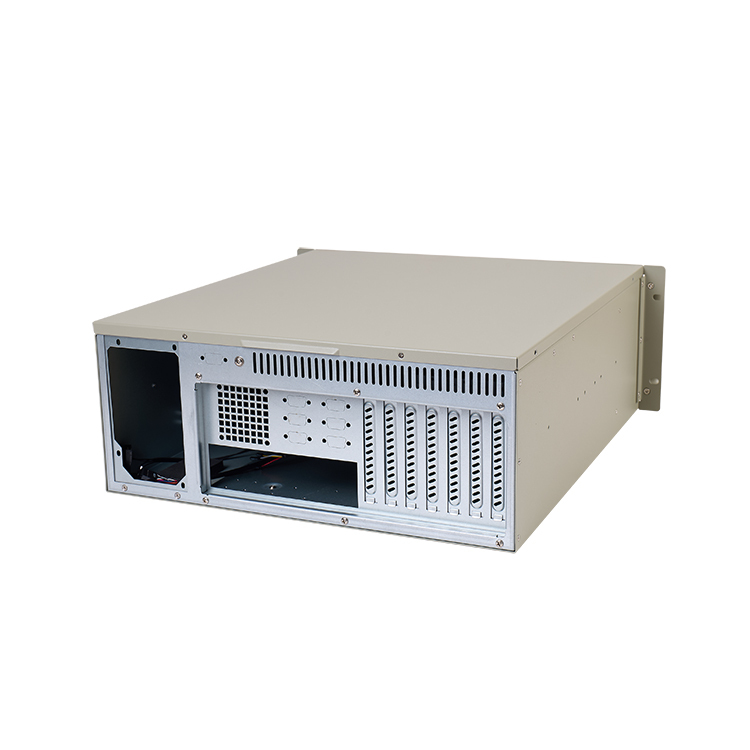

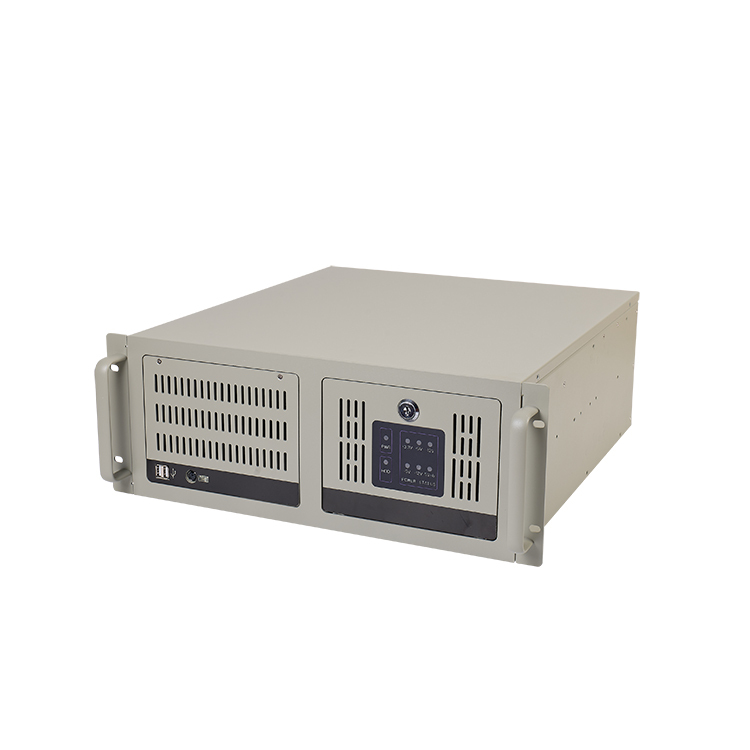

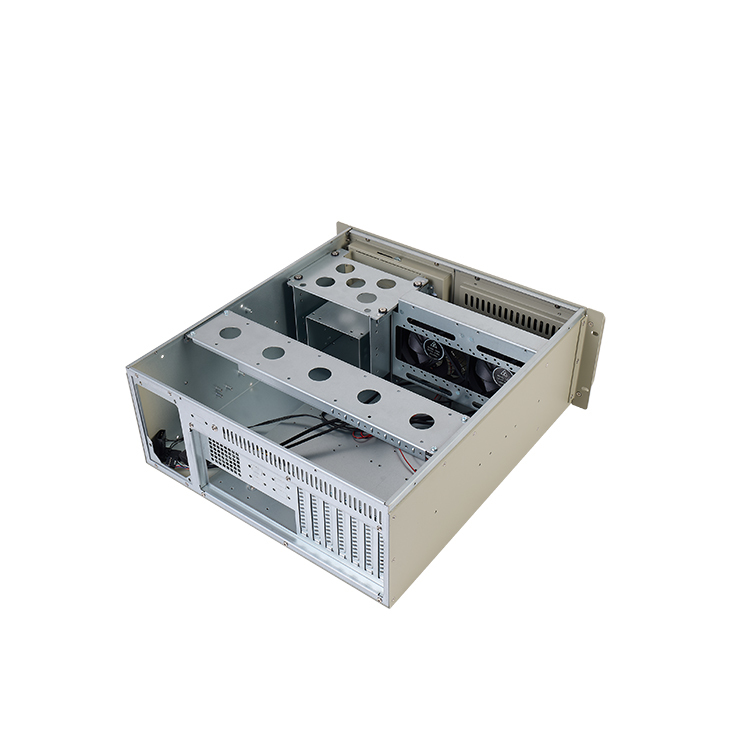

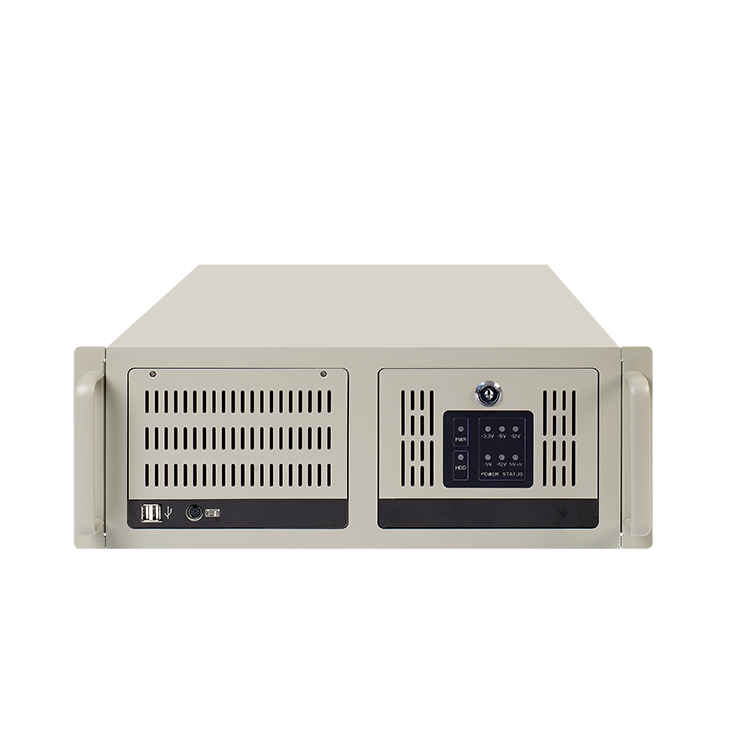

4U Rackmount Industrial Chassis, rugged steel construction, abundant PCIe expansion, stable long-run performance for industrial automation & IPC projects.
Features*Support 3x5.25" ODD trays or change it into HDD trays
*Support ATX,Mini-ATX,Micro-ATX and ITX motherboard
*Support ATX power supply
*Smooth border prevent lacerating your skin
Application Fields
Factory automation, machine vision, power equipment monitoring, security surveillance, edge industrial computing and intelligent transportation control host.Specification
| Dimensions ( W x D x H ) |
430 x 480 x 176.3 mm |
| M/B Form Factor |
Support ATX,Mini-ATX,Micro-ATX and ITX motherboard |
| Drive Configuration |
Support 3x5.25" ODD trays or change it into HDD trays |
| Power Supply Form Factor |
Support ATX power supply |
| Cooling System |
2x12025 fan and 2x8025 fans |
| Expansion slot |
7 x PCI-e slot(support full hightness cards) |
| Front panel control |
Power ON/OFF x 1, System reset x 1,USB2.0 x 2,KB-LK x1 |
| Indicator |
Power x 1, HDD x 1 |
| Materials |
SPCC 1.2mm |
| Packaging |
Carton with EPE foam |
| Carton size |
600 x 520 x 260mm |
| Volume(CBM) |
0.08 |
| Net Weight |
11.5 KG |
| Gross Weight |
14.2 KG |
| Operation Temperature |
-5°--- 45° |
| Storage Temperature |
-40°---70° |
| Humidity |
10% – 90% relative (non-condensing) |
