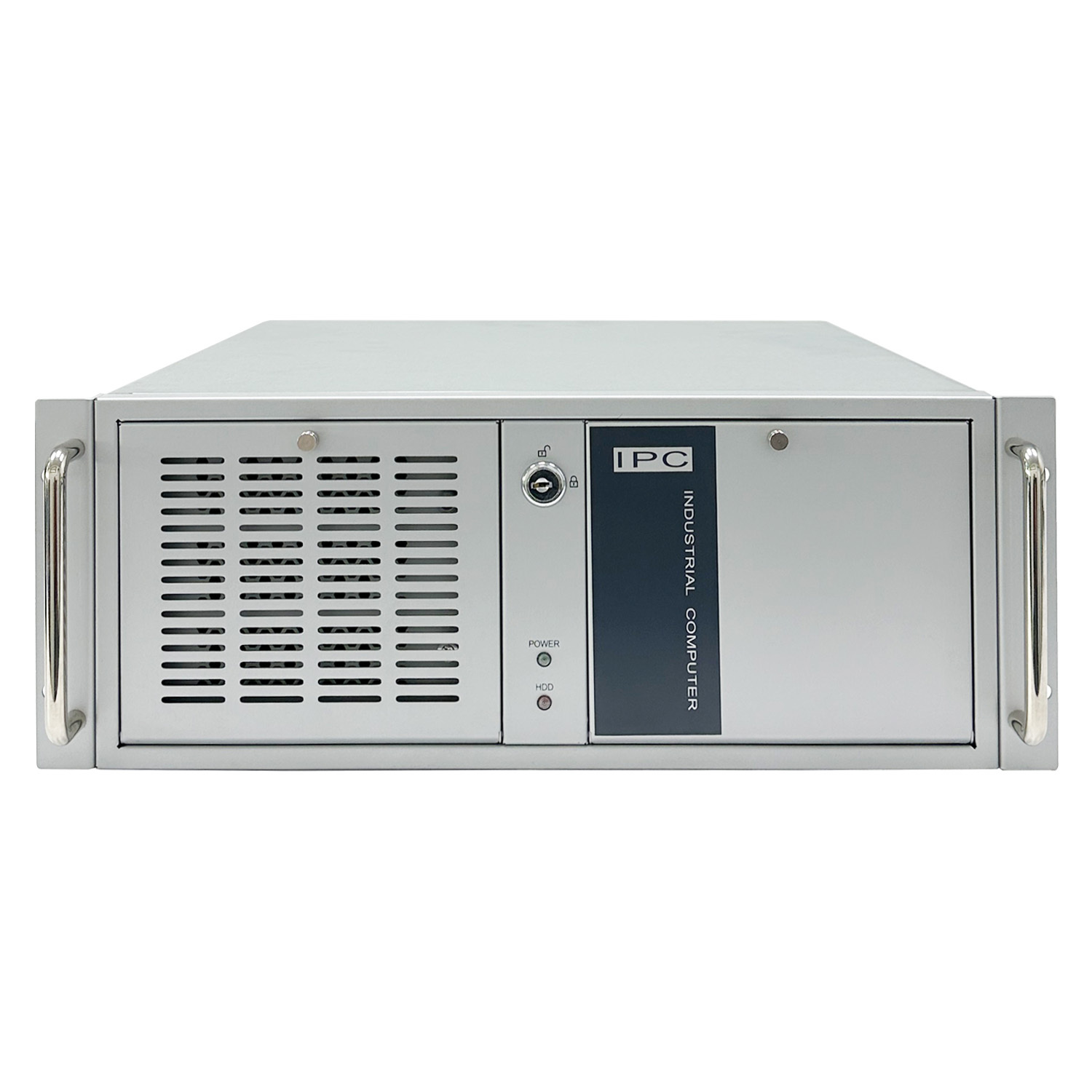

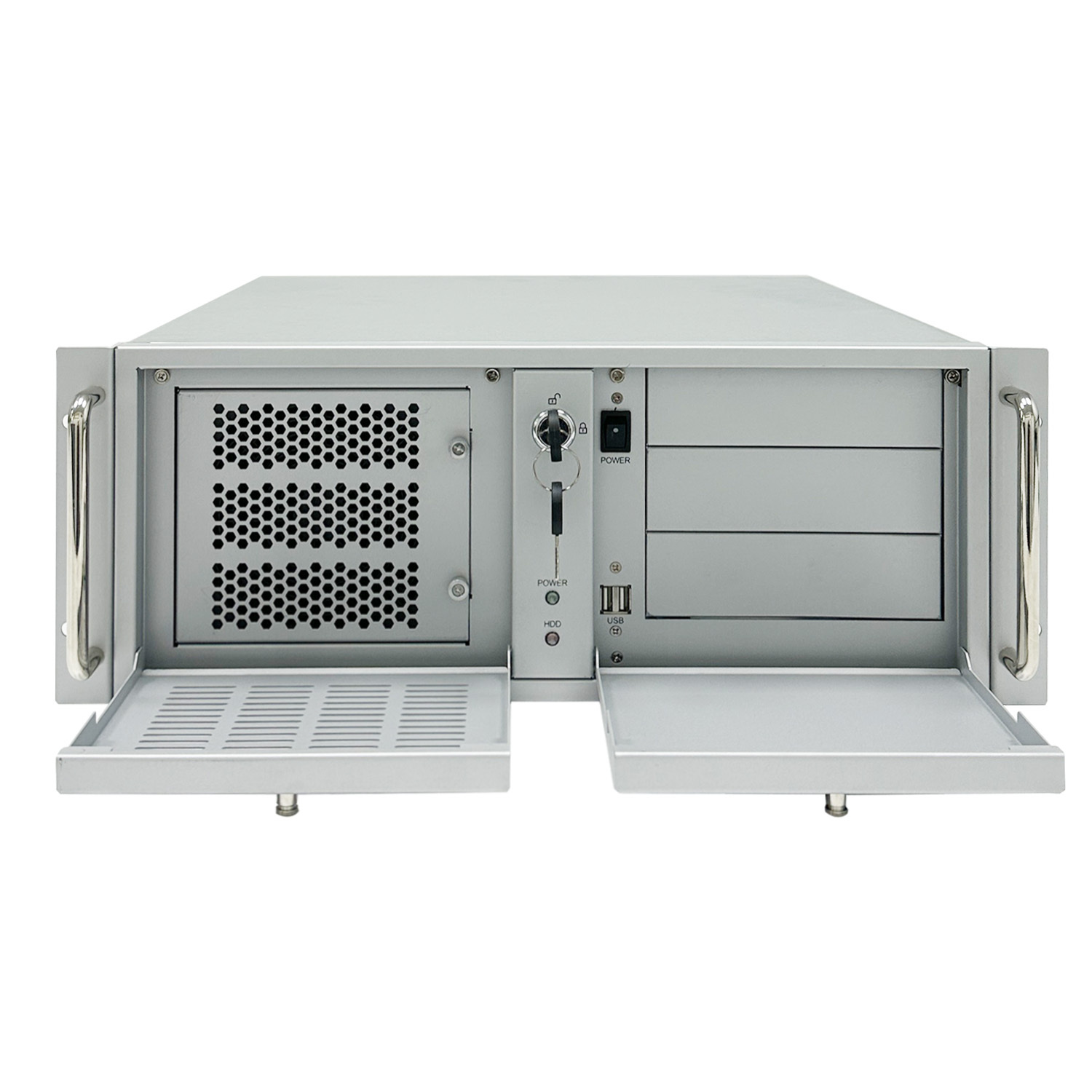

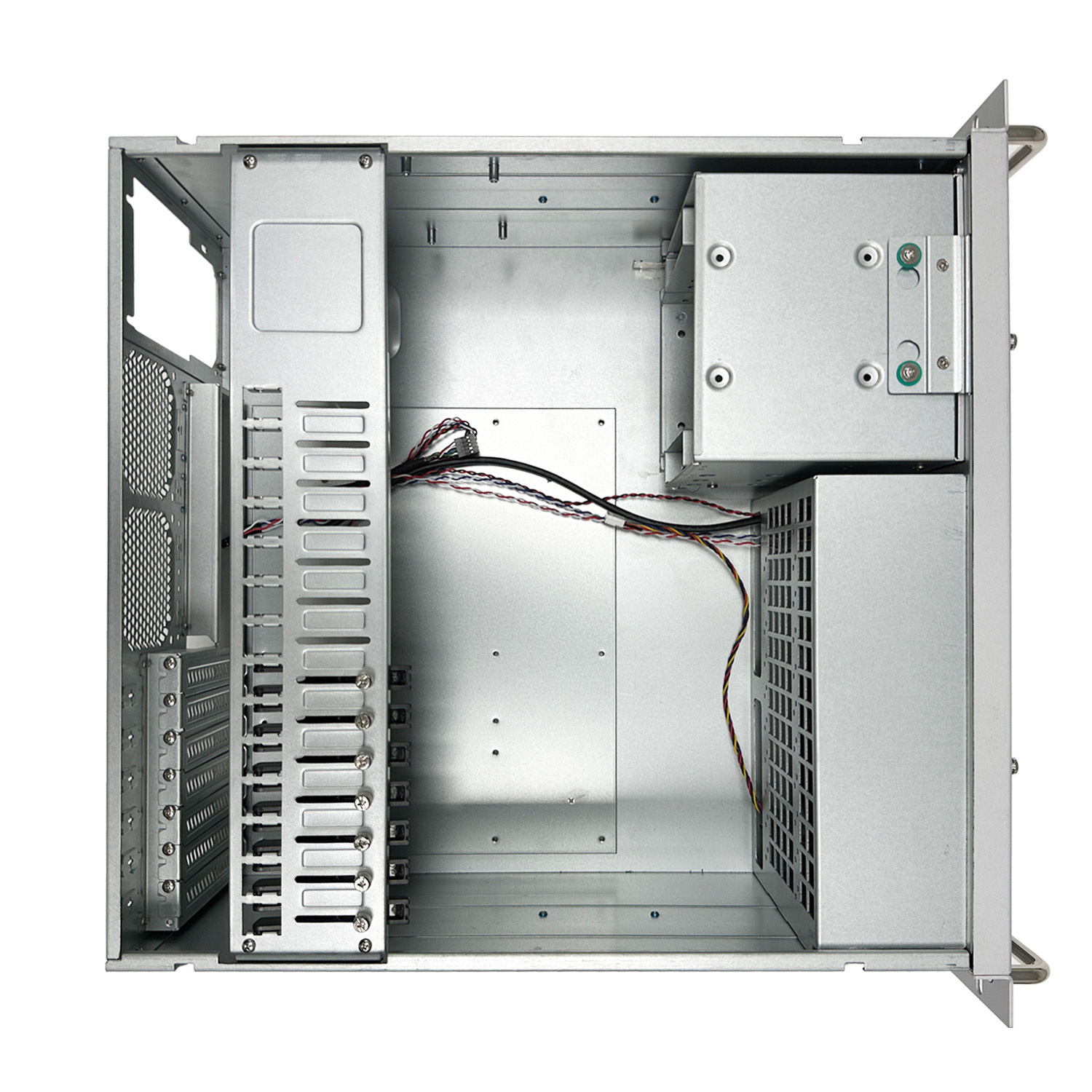

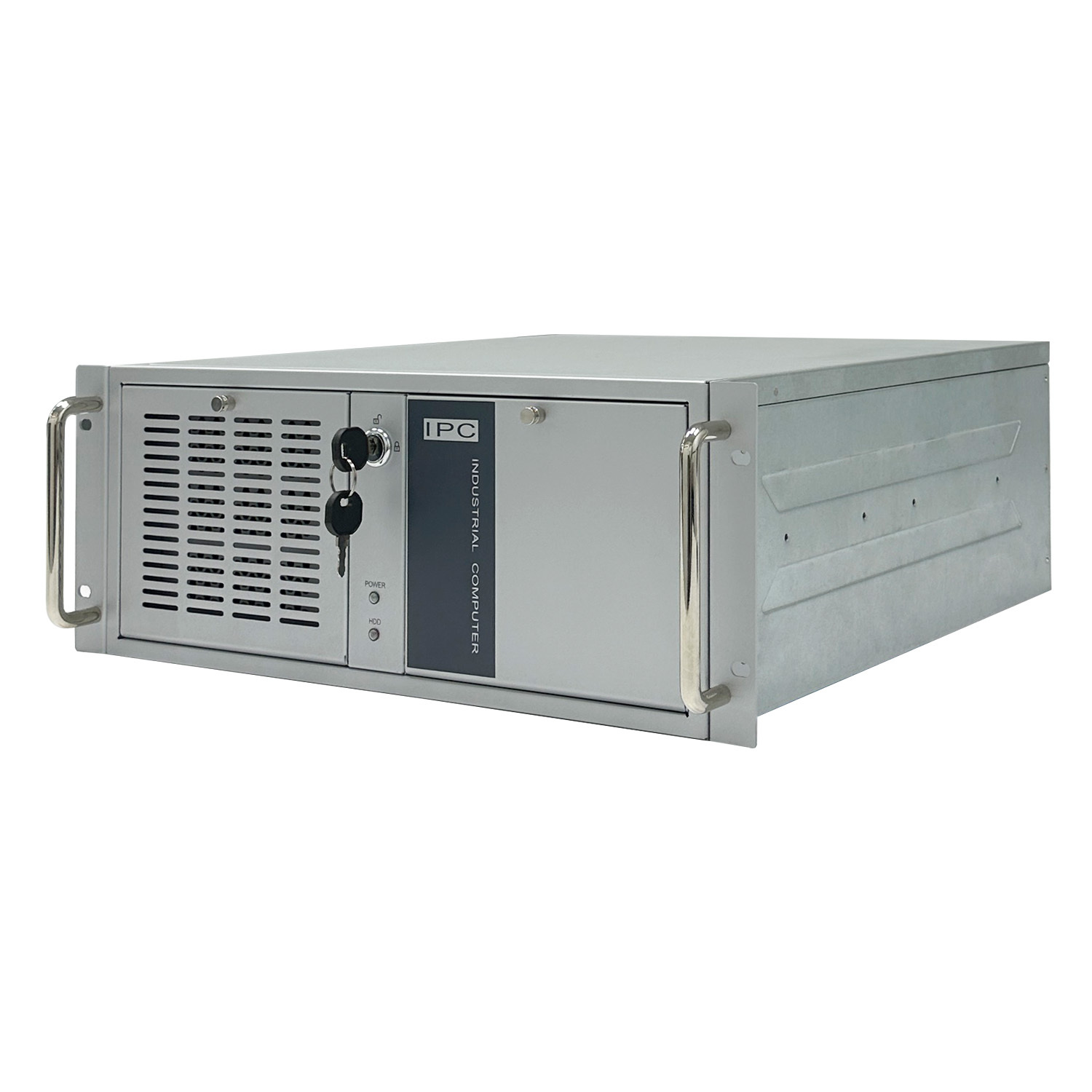

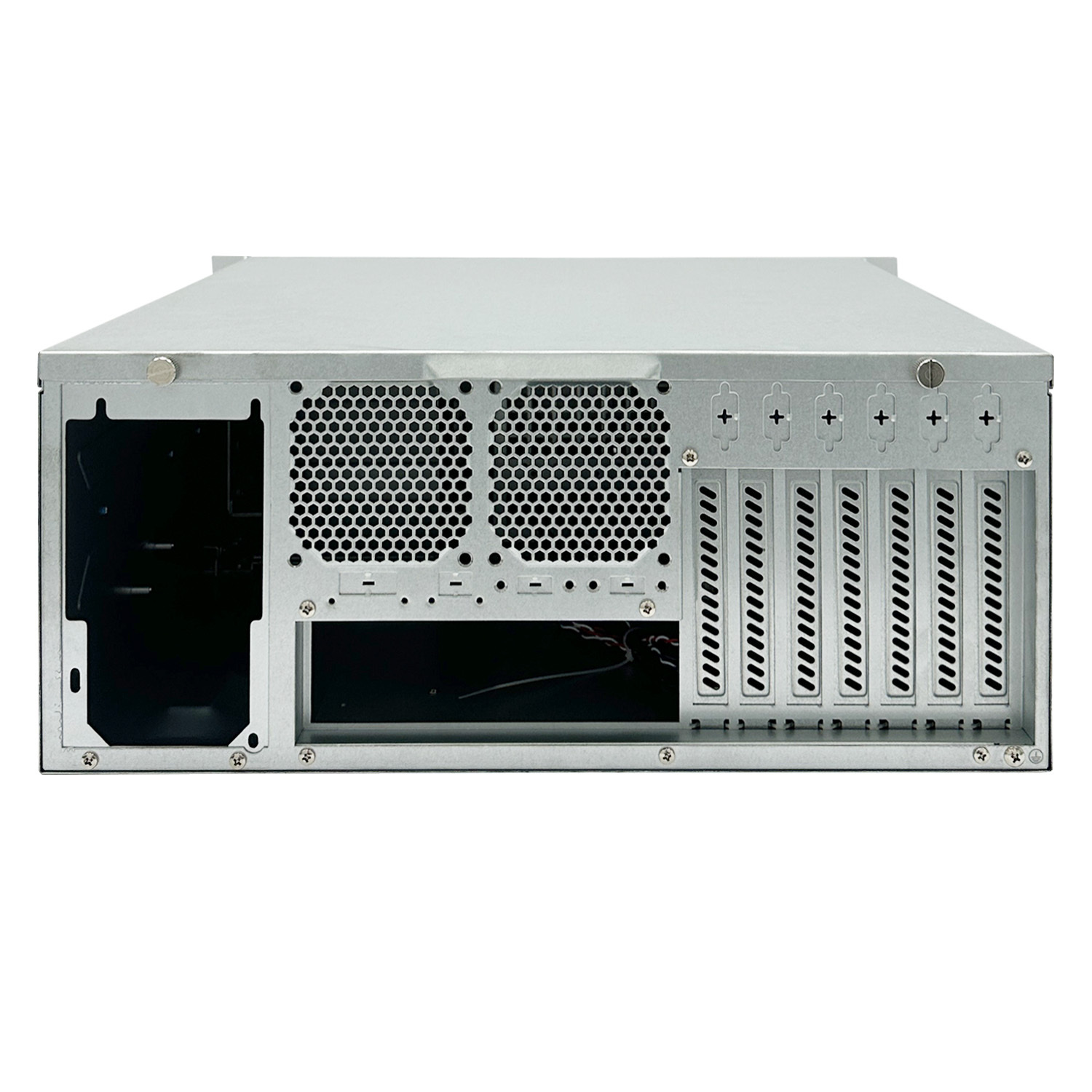

4U Industrial Computer Chassis
Features*Support 3x5.25" ODD ,1x3.5" HDD or 1x5.25" ODD and 3x3.5" HDD
*Support ATX,Micro-ATX and mini-ITX motherboard
*Support ATX power supply
*Smooth border prevent lacerating your skin
Specification
| Dimensions ( W x D x H ) |
427 x 460 x 175 mm |
| M/B Form Factor |
Support ATX,Micro-ATX and mini-ITX motherboard |
| Drive Configuration |
Support 3x5.25" ODD ,1x3.5" HDD or 1x5.25" ODD and 3x3.5" HDD |
| Power Supply Form Factor |
Support ATX power supply |
| Cooling System |
1x12025 fan on front, 1x8025 fan on rear for optional. |
| Expansion slot |
7 x PCI/ PCI-e slot(support full hightness cards) |
| Front panel control |
Power ON/OFF x 1,USB2.0 x 2 |
| Indicator |
Power x 1, HDD x 1 |
| Spare serial ports |
5 COM ports, 1 2-pin Phoenix terminal, 1 4-pin Phoenix terminal, 2 USB ports |
| Materials |
SGCC 1.0mm |
| Packaging |
Carton with EPE foam |
| Carton size |
600 x 560 x 295mm |
| Volume |
0.099 CBM |
| Net Weight |
KG |
| Gross Weight |
KG |
| Operation Temperature |
-5°--- 45° |
| Storage Temperature |
-40°---70° |
| Humidity |
10% – 90% relative (non-condensing) |
