Features
* Adopts 1U rackmount design, compliant with the EIA‑RS‑310C industry standard.
* Equipped with 4 × 3.5” HDD bays + 4 × 2.5” drive bays for flexible storage expansion.
* Supports maximum ATX 12 × 13” motherboards.

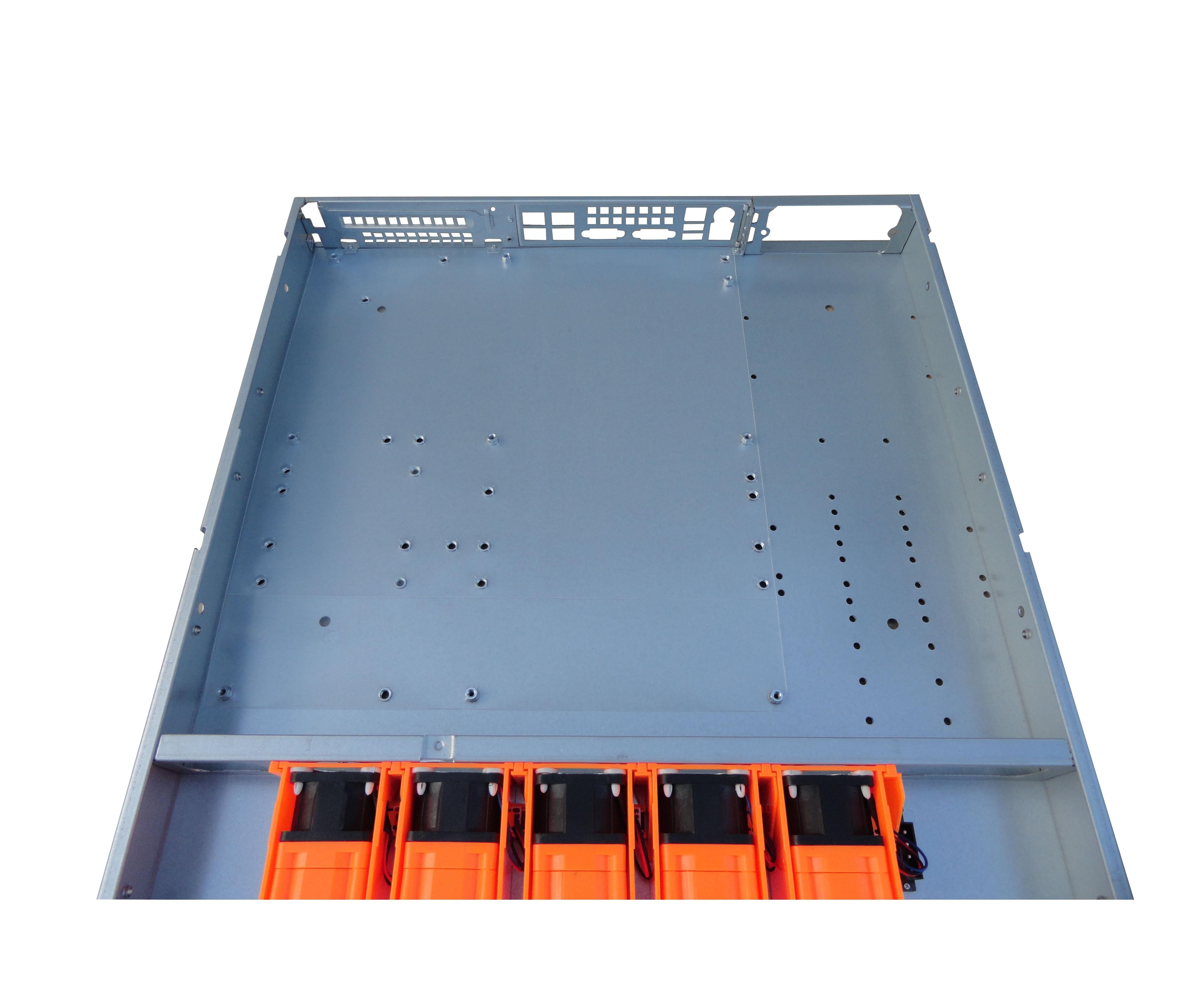

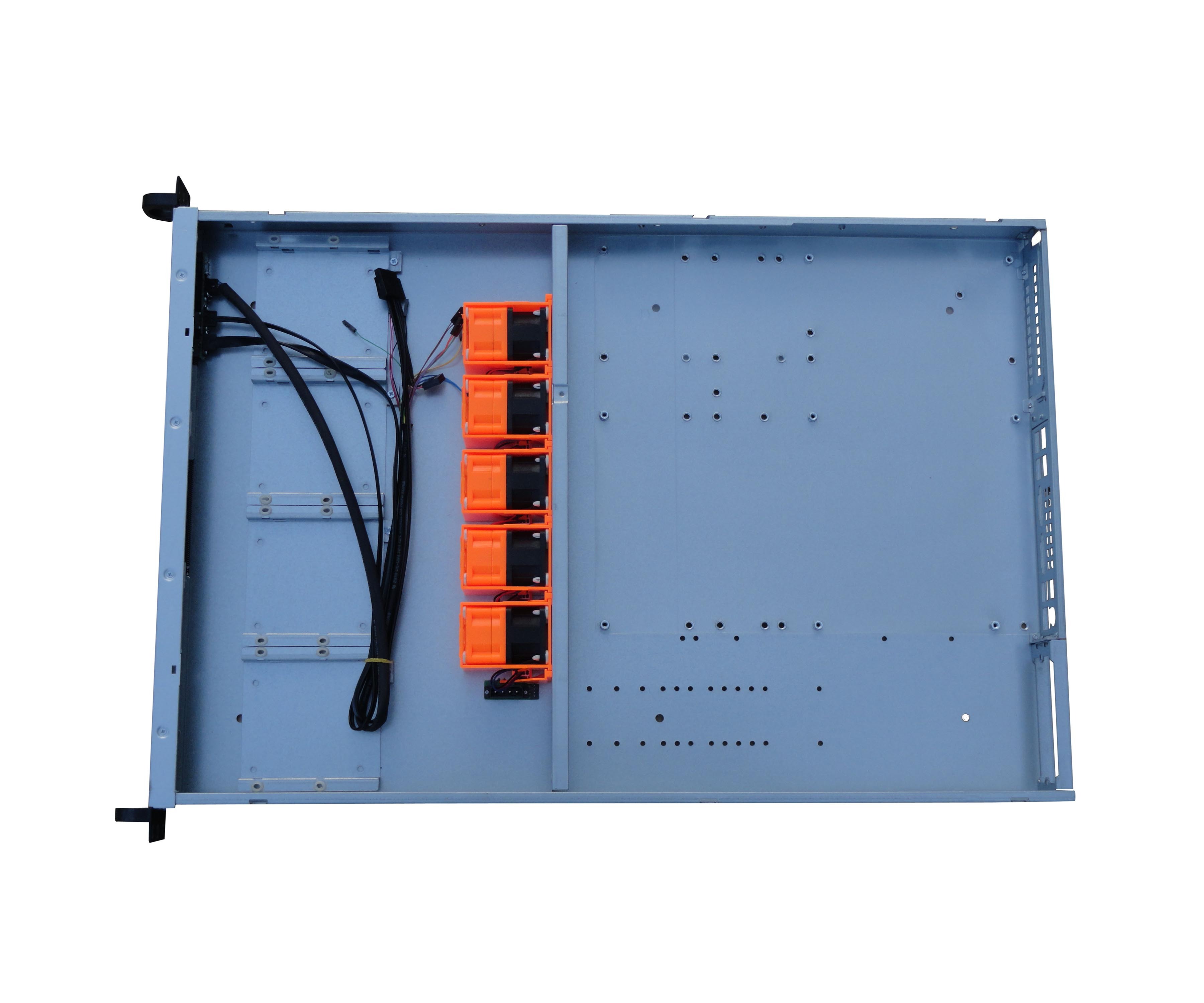

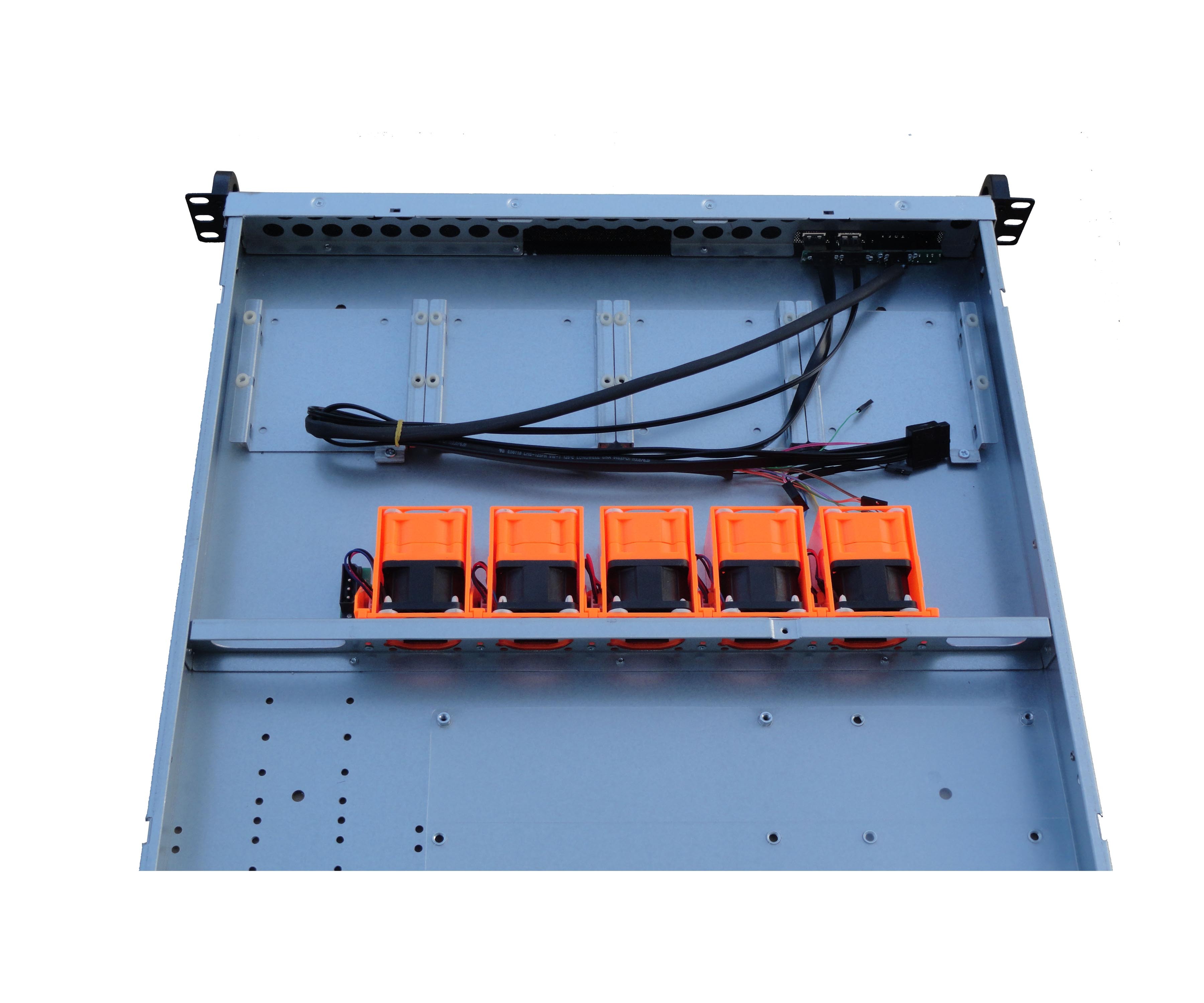

* Pre‑installed with 5 × 40mm middle‑mounted cooling fans for efficient heat dissipation.

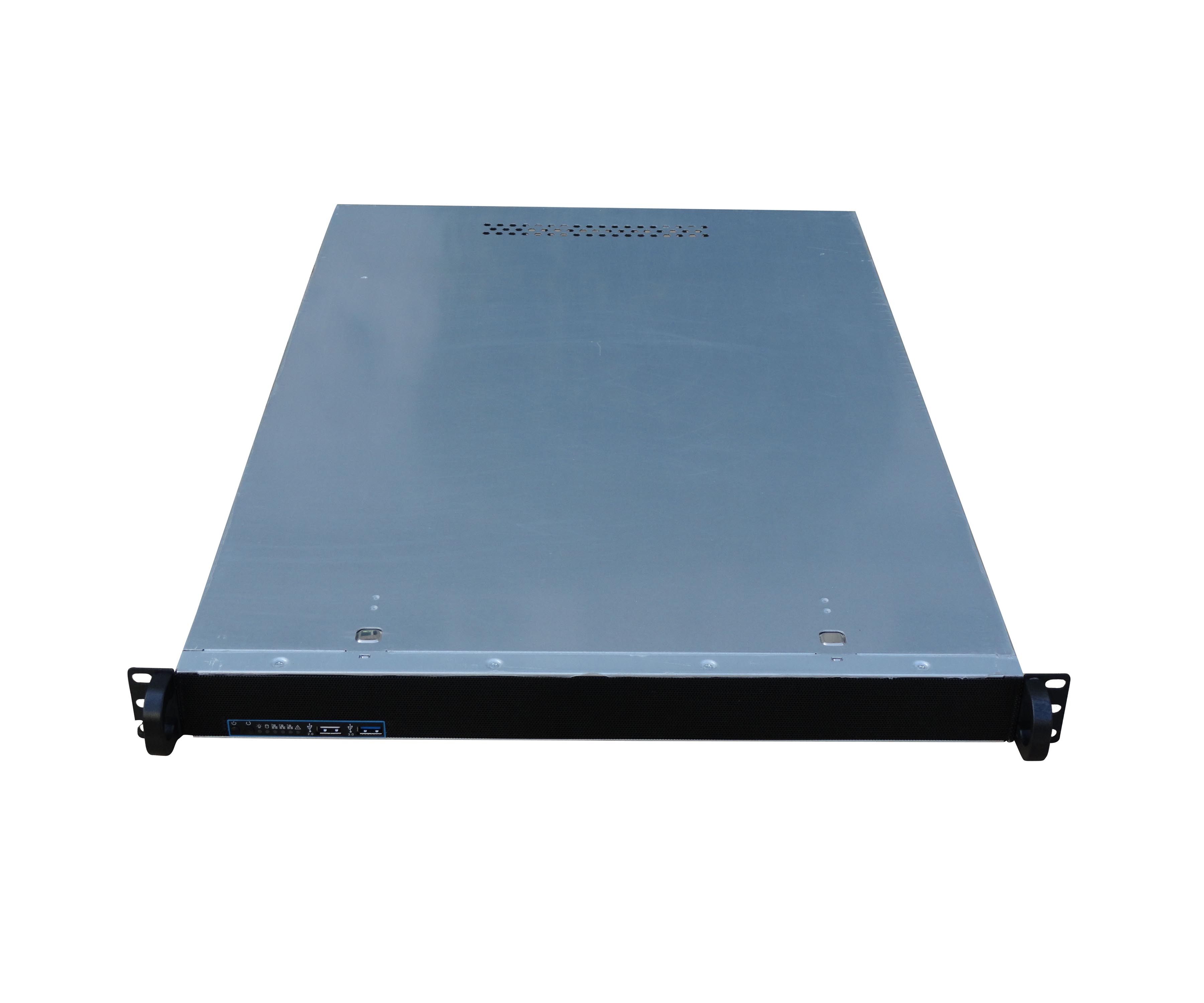

* Front‑accessible ports: 1 × USB 3.0 & 1 × USB 2.0 for convenient external connection.
* Smooth‑edged frame design to avoid accidental cuts or scratches.
Specification
| Dimensions ( W x D x H ) |
430mm x 650mm x 45mm |
| M/B Form Factor |
Supports,EEB (12"x13") CEB(12"x10.5"), ATX (12"x9.6"),
Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard |
| Drive Configuration |
4 x 3.5" HDD drive bays and 4 x 2.5" drive bays |
| Power Supply Form Factor |
Standard 1U power supply |
| Built in system cooling fan |
5 x 40mm fan |
| Expansion slot |
N/A |
| Front panel control |
Power ON/OFF x 1, System reset x 1,,1 x USB3.0 and 1 x USB2.0 |
| Indicator |
Power ON/OFF x 1, HDD x 1 |
| Materials |
SGCC 1.0mm |
| Packaging |
Double strenthen carton with EPE foam |
| Carton size |
830*555*110mm |
| Volume(CBM) |
0.051 |
| Net Weight |
6.5 kg |
| Gross Weight |
9.1 kg |
