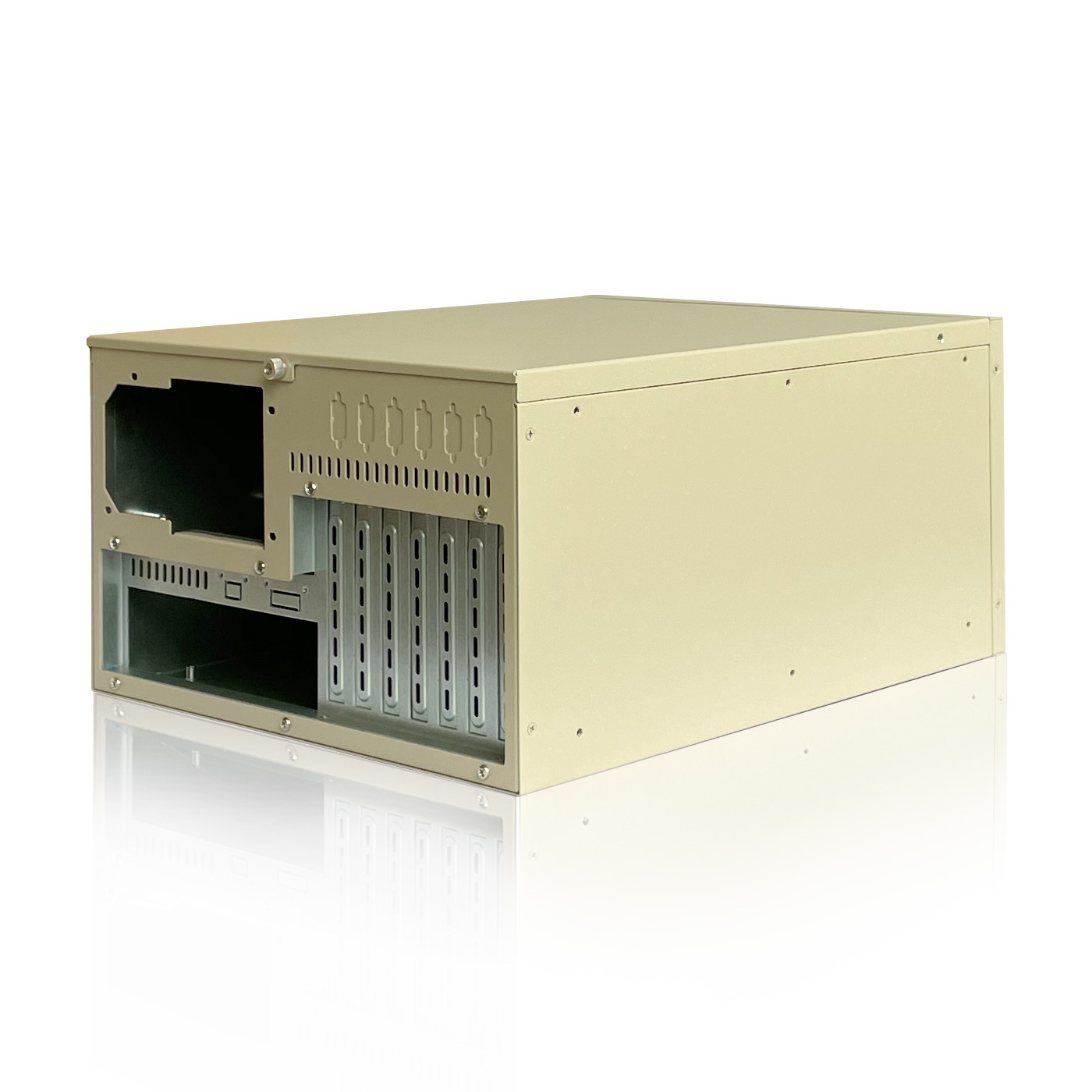

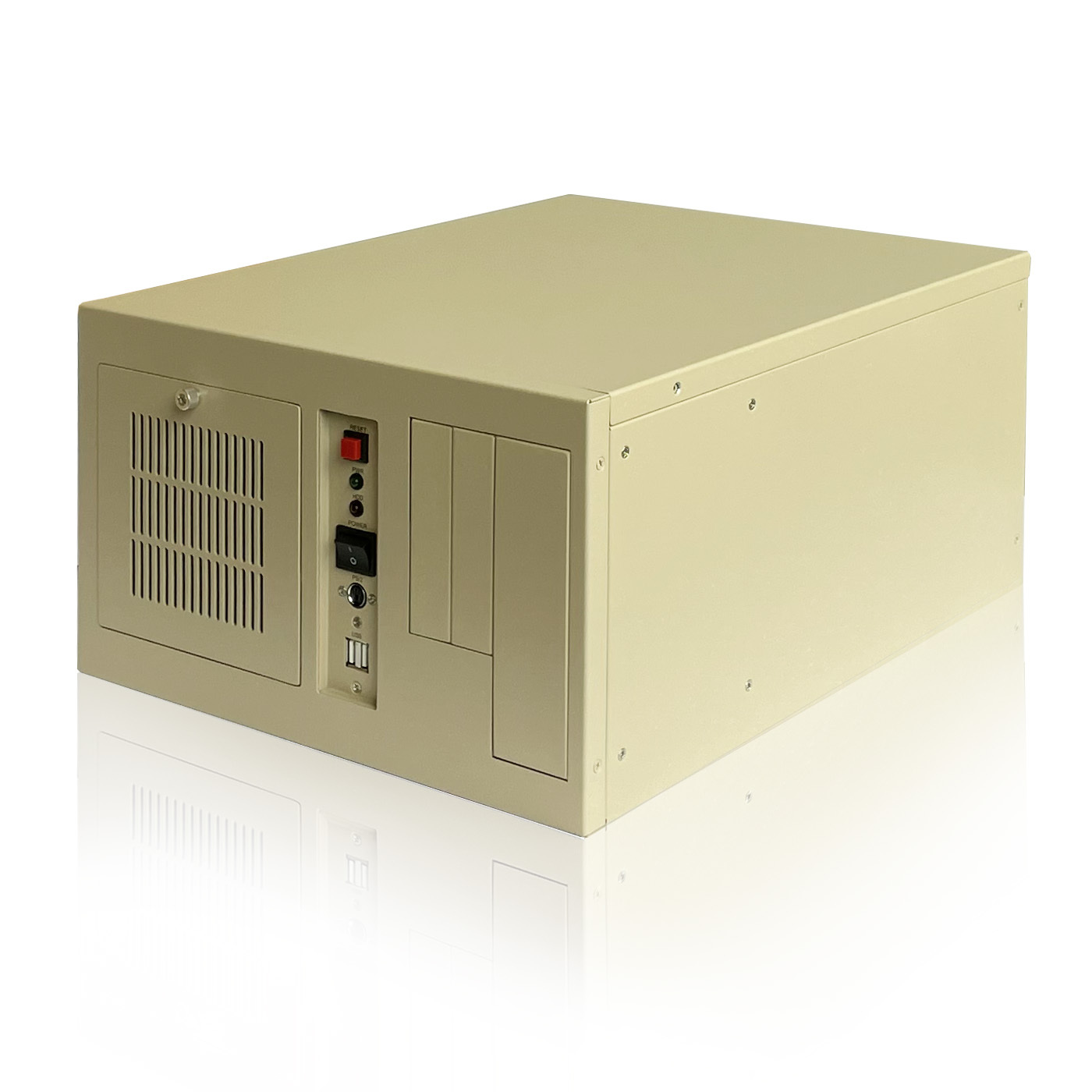

Wall mount industrial chassis
Features*Supports ATX/mATX motherboard
*Support 1 x 3.5" and 1x2.5" drive bays
*1x12025 front fan
*Supports ATX type power supply
*Anti-vibration design for drive bay
*Supports vertical & horizontal mounting

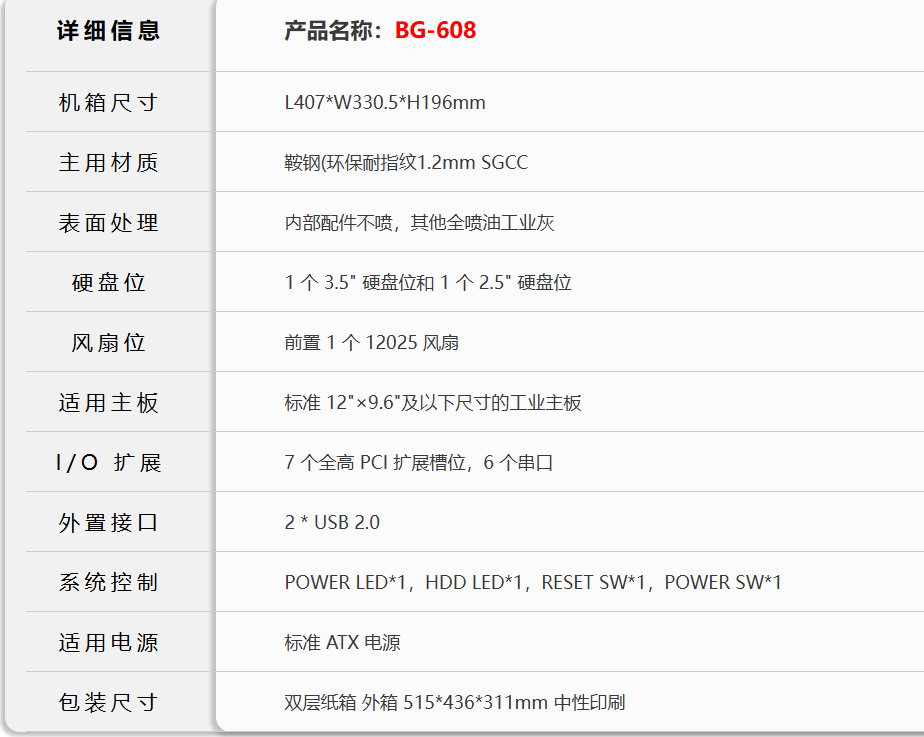

Specification
| Dimensions ( W x D x H ) |
330.5 x 407 x 196 mm |
| M/B Form Factor |
Support ATX / mATX motherboard |

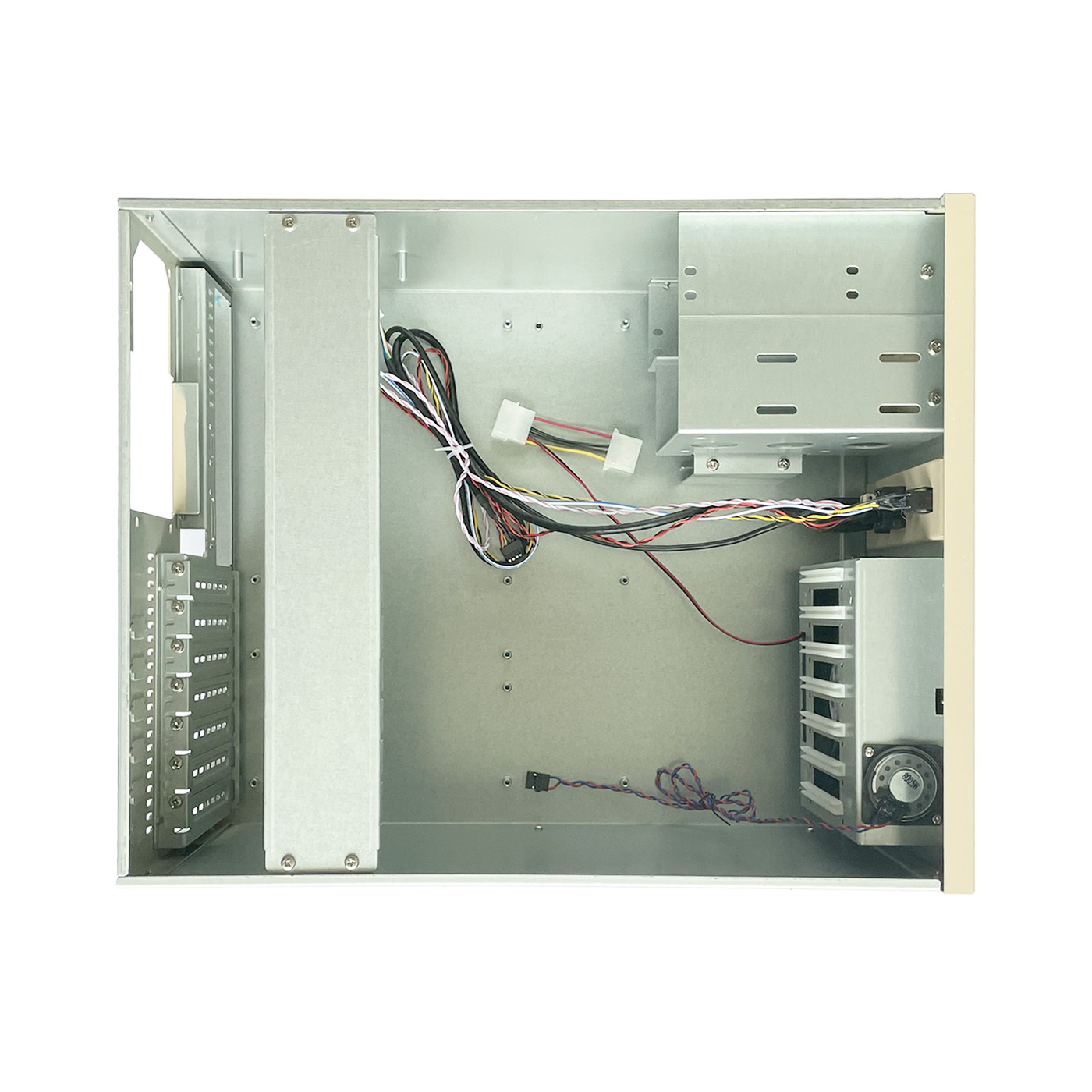

| Drive Configuration |
1X3.5" and 1x2.5" drive bays |
| Power Supply Form Factor |
support ATX power supply |
| Cooling System |
1 x 12025 fan on front |

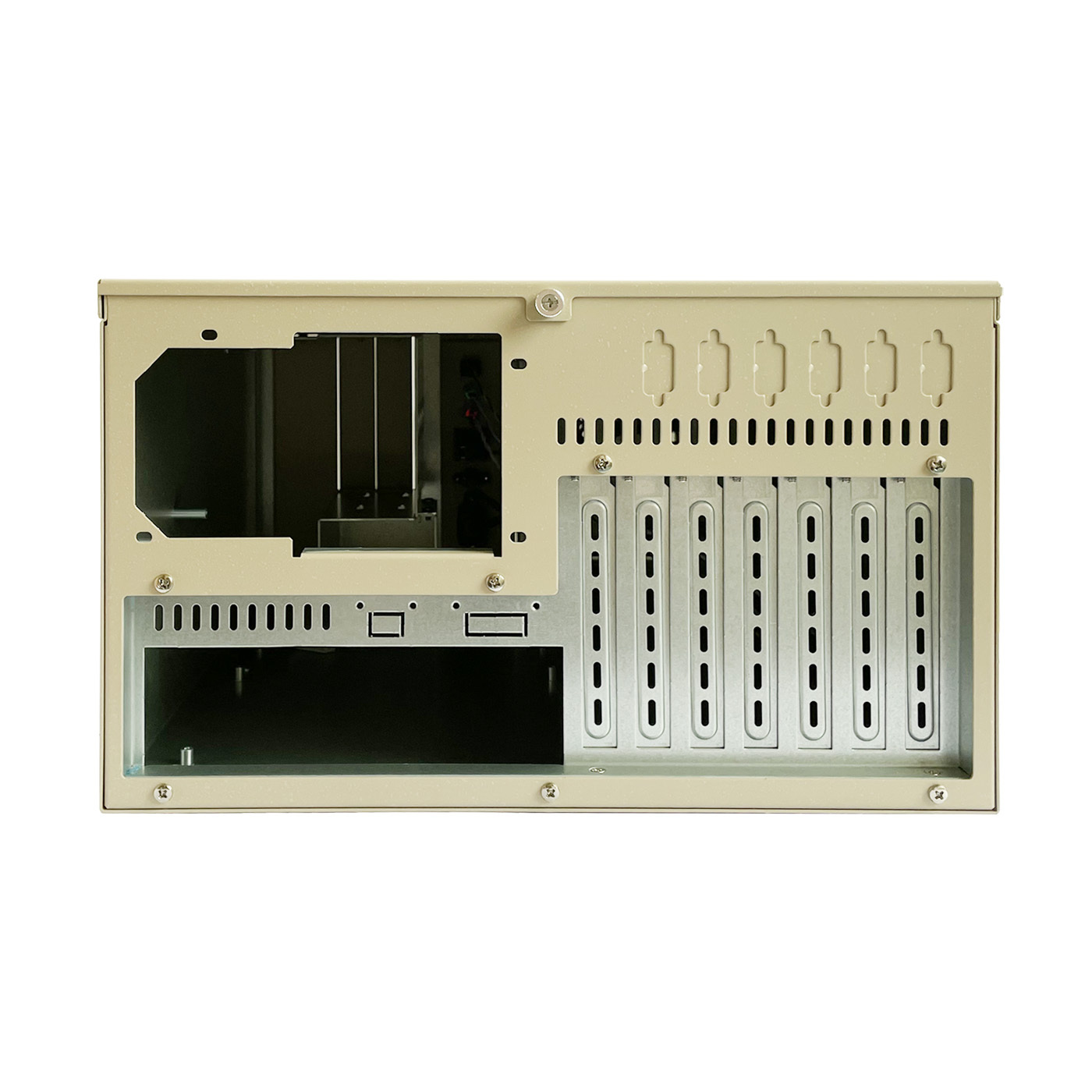

| Expansion slot |
7 slots,full hight |

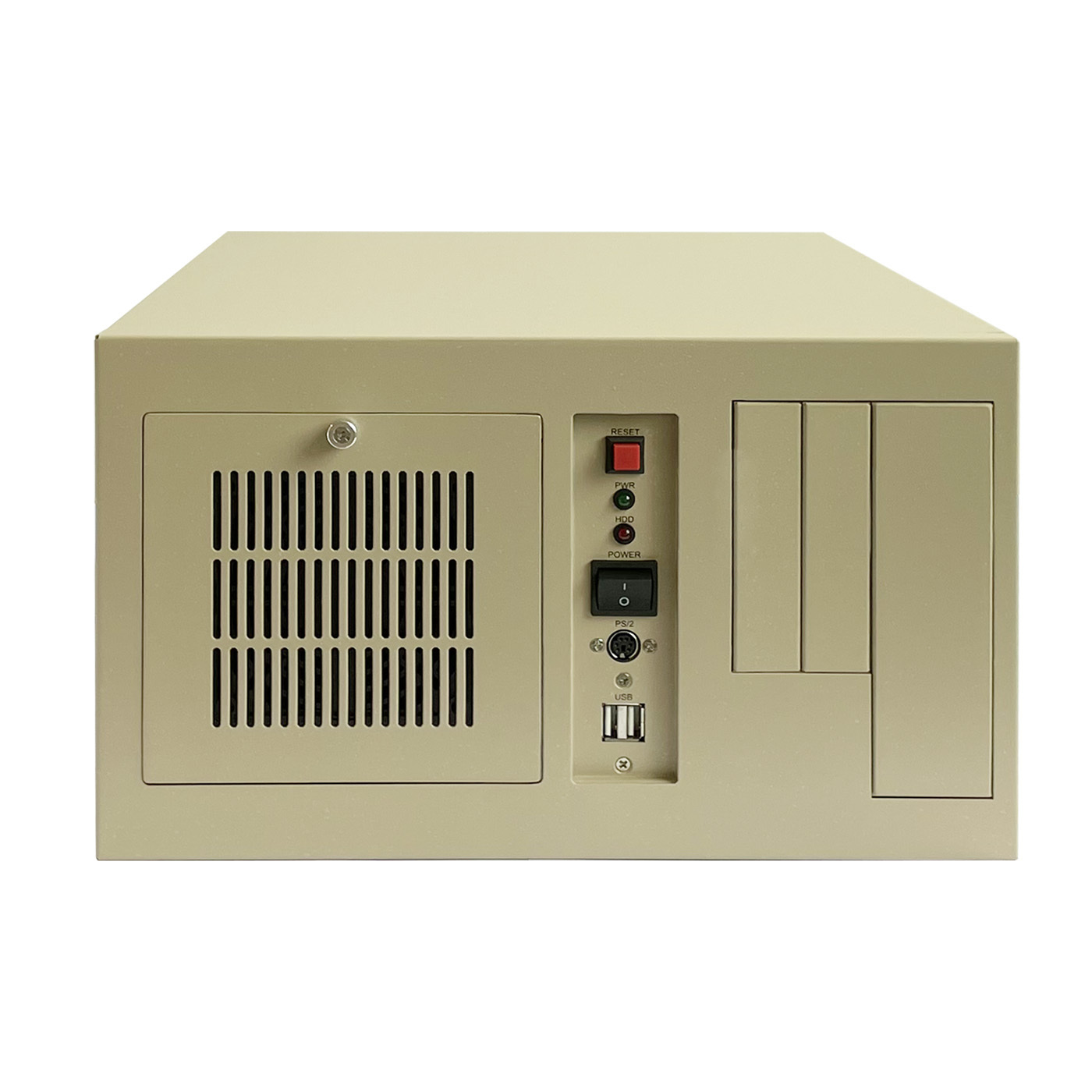

| Front panel control |
Power ON/OFF x 1, System reset x 1,USB2.0 x 2 |
| Network port |
Power LED x 1,HDD LED x 1 |
| Materials |
SGCC 1.2mm |
| Packaging |
Carton with EPE foam |
| Carton size |
515x436x311mm |
| Volume |
0.07 CBM |
| Net Weight |
KG |
| Gross Weight |
KG |
| Operation Temperature |
-5°--- 45° |
| Storage Temperature |
-40°---70° |
| Humidity |
10% – 90% relative (non-condensing) |
Custom chassis solution is avaiable, our core expertise lies in the design and R&D of enclosure & chassis,
please send us inquiry if you are interested in custom chassis(sales@dartachassis.com).
